MF-EX-21 Multi-Purpose Junction Box for Hazardous-Area Heat Tracing Systems

The MF-EX-21 Multi-Purpose Junction Box is designed for industrial heat tracing installations that demand safe cable termination, flexible circuit distribution, and reliable performance in hazardous-area environments. In electric heat tracing systems, a junction box is not simply an enclosure; it is a critical interface between power cables, heating cables, cold leads, grounding conductors, and field accessories. When the operating environment includes chemical plants, oil and gas facilities, cold climates, exposed outdoor areas, or potentially explosive atmospheres, the quality of the junction box directly affects system safety, maintenance efficiency, and long-term operational stability.

This product is a hazardous-area industrial polyester junction box developed for power supply connections, end-box applications, splice-box applications, and marshalling-box configurations. It is especially suitable for use with heating cables and cold cables through M20 connection kits, while the higher-capacity configuration supports large terminal requirements for PI and MI series heating cables. With a strong engineered polymer housing, silicone rubber sealing gasket, stainless steel captive lid screws, DIN rail terminal design, IP66 ingress protection, and wide ambient temperature performance, the MF-EX-21 provides the combination of safety, installation flexibility, and durability required by modern heat tracing projects.

For contractors, engineering companies, maintenance teams, and end users, the practical value of this junction box lies in its ability to simplify complex field wiring while maintaining a high level of protection. Depending on system configuration, it can accommodate multiple heating cable or cold lead connections along with a power cable. The use of standardized threaded entries, separately ordered glands and connection kits, and DIN rail mounted terminals allows the box to be integrated into many industrial heating cable layouts without unnecessary customization.

Beyond the product itself, the manufacturing background behind this junction box is important. It is produced by Santo Thermal Control Technology Co., Ltd., a company focused on electric heat tracing, heating cable accessories, self-regulating heating cables, constant-power heating cables, MI cables, snow melting cables, and related thermal control products. With decades of industry experience, certified quality systems, explosion-proof and EAC certification experience, and continued investment in product development and testing, the company provides both manufacturing capability and application knowledge for heat tracing systems used in petroleum, chemical, gas, construction, solar energy, geothermal cultivation, and industrial insulation applications.

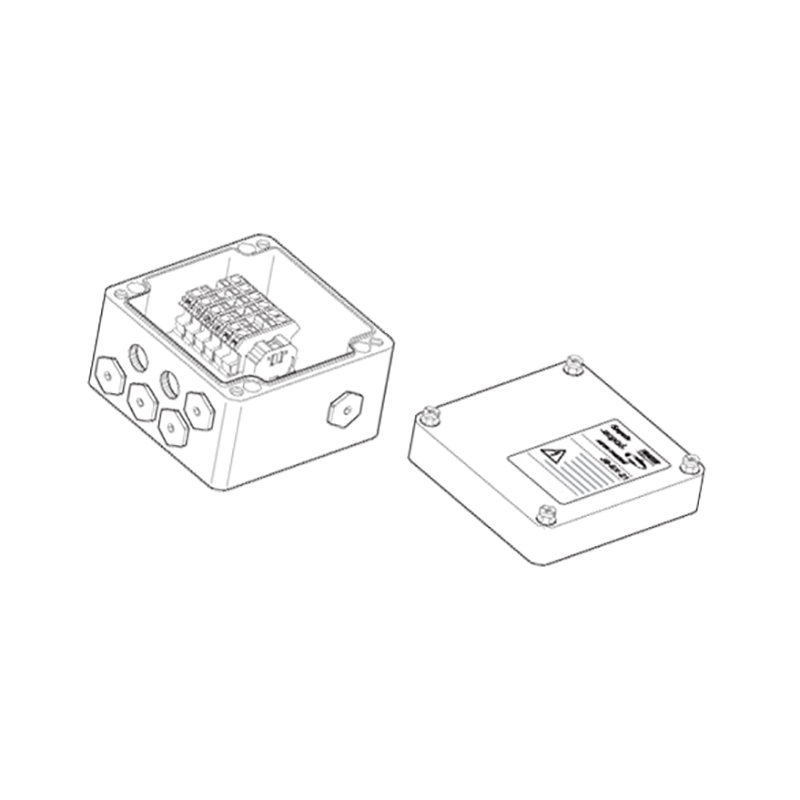

MF-EX-21 Multi-Purpose Junction Box

Product Role in Industrial Heat Tracing Systems

In an industrial heat tracing circuit, heat is generated along a pipe, vessel, instrument line, tank, or process component to prevent freezing, maintain process temperature, or protect operating stability. However, the heating cable itself must be powered, terminated, grounded, branched, tested, and protected. This is where a properly designed junction box becomes essential. The MF-EX-21 serves as a central connection point that can link power cables with heating cables or cold leads while maintaining mechanical protection and electrical continuity.

Typical applications include power supply boxes, end-boxes, splice boxes, three-phase and loop configurations, and marshalling boxes. In practical field use, one enclosure may need to collect several heating cable circuits while also accepting a larger incoming power cable. A generic enclosure may provide space but fail to deliver hazardous-area suitability, appropriate terminal rating, cable gland compatibility, or weather resistance. The MF-EX-21 addresses these requirements through purpose-built construction for heat tracing installations.

The product is offered in configurations that support different conductor sizes and current capacities. The standard MF-EX-21 uses spring-type terminals suitable for conductors up to 10 mm², with a maximum operating voltage of 550 Vac and maximum operating current of 53 A. The MF-EX-21/35MM2 version is intended for larger terminal requirements and uses screw terminals, including WDU35 phase or neutral terminals and WPE earth terminals. This high-capacity configuration supports maximum operating voltage of 690 Vac and maximum operating current of 100 A.

This dual configuration approach is a major advantage for heat tracing engineers. A project may include smaller branch circuits, larger power distribution points, PI cables, MI cables, or multiple cold lead terminations. Instead of forcing every installation into one terminal size or one current class, the product range allows the designer to select the appropriate junction box configuration for the electrical load and connection method.

Key Construction Features

The MF-EX-21 is built around a robust industrial enclosure made from electrostatic charge-resistant glass-filled engineered polymer. This material selection is important in hazardous areas because surface charge control, mechanical stability, and environmental resistance all influence long-term safety. The black engineered polymer box and lid provide a strong non-metallic enclosure suitable for demanding industrial environments.

The sealing gasket is made from silicone rubber. Silicone rubber offers flexibility and resilience across a wide temperature range, helping the enclosure maintain sealing pressure even as outdoor or process-area temperatures change. The lid fixing screws are stainless steel and captive, reducing the risk of screw loss during inspection or maintenance. Captive screws are a practical detail that can save time in the field and reduce foreign-object risks around process equipment.

The box provides high ingress protection. Both listed configurations specify IP66 protection, meaning the enclosure is designed to resist dust ingress and powerful water jets. This is highly relevant for outdoor heat tracing systems, washdown areas, snow and ice exposure, and industrial sites where rain, dust, process residue, and cleaning procedures may threaten electrical connections.

The ambient temperature capability is also suited to heat tracing applications. The standard MF-EX-21 is specified from -55°C to +55°C, while the 35 mm² terminal version is specified from -50°C to +55°C. These ranges support use in cold climates where freeze protection is essential, while also allowing operation in many industrial outdoor environments.

Core Technical Specifications

Advantages Over Generic Junction Boxes

Many industrial projects use general-purpose junction boxes for low-risk applications. However, heat tracing systems in hazardous areas require more than a simple enclosure. The MF-EX-21 has several practical advantages compared with ordinary boxes or low-specification alternatives.

Purpose-Built for Heating Cable Connections

The first advantage is its specific suitability for heat tracing connections. The box is designed to make connections between power cables, heating cables, and cold cables through M20 connection kits. This is not a generic electrical box adapted as an afterthought; it is configured around the requirements of heating cable systems, including multiple heating cable entries and power cable entry options.

For field installers, this reduces improvisation. Improvised cable entries, unsuitable terminal arrangements, or mismatched glands can create long-term reliability risks. By using a product designed for heating cable accessories and connection kits, the installation becomes cleaner, more repeatable, and easier to inspect.

Hazardous-Area Application Capability

The MF-EX-21 is intended for hazardous-area use, with approvals listed for Russia, Kazakhstan, and Belarus, and additional country requirements handled through local technical consultation. In industrial sectors such as petroleum, chemical processing, gas handling, and energy infrastructure, hazardous-area suitability is a fundamental selection criterion. A junction box used in these areas must support safe installation practices and appropriate certified accessories.

Compared with non-hazardous general enclosures, the MF-EX-21 offers a more suitable platform for heat tracing circuits in classified industrial environments. Its electrostatic charge-resistant material, sealed construction, and compatible hazardous-area glands strengthen the overall safety design of the installation.

Flexible Entry Design

The standard configuration includes six M20 entries and one M32 entry, while the high-capacity version includes six M20 entries and one M40 entry. This layout allows the box to support several heating cable or cold lead connections plus a larger power cable. The result is flexible circuit grouping without immediately requiring a larger distribution enclosure.

Competitor products may offer fewer entry points, limited gland compatibility, or require extra machining. Factory-provided entry patterns reduce installation effort and help maintain enclosure integrity. When entries are used with proper stopping plugs, rain plugs, and approved glands, the final installation can maintain protection while supporting practical wiring layouts.

DIN Rail Terminal Architecture

Both configurations use DIN rail mounted terminals. The standard version uses spring-type terminals, while the 35 mm² version uses screw terminals for larger conductors. DIN rail architecture is widely accepted in industrial electrical practice because it supports organized wiring, terminal replacement, expansion within limits, and clear circuit identification.

Spring-type terminals are valuable where maintenance-free clamping and fast connection are desired. Screw terminals are advantageous for larger conductor sizes and high-current circuits. By offering both styles in the product family, the MF-EX-21 range supports different engineering preferences and load requirements.

High Current and Voltage Options

The standard box supports up to 550 Vac and 53 A, which is suitable for many heat tracing branch connections. The MF-EX-21/35MM2 configuration increases capability to 690 Vac and 100 A, supporting larger power distribution needs and large terminal sizes. This is particularly useful when working with PI and MI heating cables or when the box must function as a marshalling point for power cables.

Compared with smaller low-cost junction boxes, the availability of a 35 mm² terminal configuration reduces the need to switch to a completely different enclosure family for higher loads. This simplifies documentation, procurement, spare parts management, and installation training.

Outdoor and Washdown Durability

IP66 ingress protection gives the product an advantage in outdoor sites, industrial washdown zones, and dusty environments. Heat tracing circuits often run along exposed pipe racks, tank farms, loading stations, process units, and rooftop mechanical systems. In these areas, moisture ingress can cause insulation faults, corrosion, nuisance trips, or unsafe operation. A well-sealed enclosure helps protect the connection point from these threats.

The combination of silicone rubber gasket and engineered polymer housing provides a stable sealing platform. Stainless steel captive screws help maintain fastening reliability and simplify repeated opening during inspection.

Applications in Process Industries

The MF-EX-21 is suitable for a wide range of industrial heat tracing applications. In petroleum facilities, heat tracing may be used to maintain viscosity, protect instrumentation, prevent freezing of water lines, or keep process media flowing. In chemical plants, precise temperature maintenance and freeze protection can reduce downtime and prevent line blockages. In gas and energy facilities, trace heating may protect regulators, impulse lines, drains, and auxiliary systems.

The box can also support construction-related heating systems, solar energy installations, electric heating systems, geothermal cultivation projects, and other insulation or anti-freezing systems. In snow-prone or cold-region projects, reliable junction boxes help ensure that power distribution to heating cables remains protected when exposed to low temperatures and moisture.

Because the product can function as a power supply box, end-box, splice box, or marshalling box, it is not limited to one narrow role. Designers can use it in different positions along a heating cable network, provided the electrical ratings, approvals, cable glands, and installation requirements are properly matched to the project.

Standard MF-EX-21 Configuration

The standard MF-EX-21 configuration is built around six spring-type terminals on a DIN rail. It is labelled for 1, 2, 3, and 3 x PE connections, making it suitable for various phase, neutral, and grounding arrangements according to the circuit design. Its maximum conductor size is 10 mm² for solid and stranded conductors, with maximum operating voltage of 550 Vac and maximum operating current of 53 A.

The entry arrangement is six M20 entries and one M32 entry. The kit contents include one junction box with terminals on DIN rail, four M20 stopping plugs, two temporary M20 rain plugs, one M32 stopping plug, and one terminal jumper allowing different wiring configurations after removing the terminal plate. M20 connection kits must be ordered separately according to the heating cable type used.

This standard version is suitable for many heat tracing circuit connection points where conductor size and current do not require the larger 35 mm² terminal version. Its spring-type terminals support efficient wiring and reliable contact pressure. For contractors installing many boxes across a large site, the spring terminal design can reduce wiring time while providing organized termination.

MF-EX-21/35MM2 High-Capacity Configuration

The MF-EX-21/35MM2 configuration is intended for installations where large terminal sizes are required. It is especially relevant for PI and MI heating cables, large power cable marshalling, and higher-current circuit arrangements. This configuration uses DIN rail mounted screw terminals from Weidmuller, supporting safe, reliable, and maintenance-free operation when installed correctly.

The terminal set includes three WDU35 screw terminals, two WPE10 earth terminals for heating cable earth connections, and one WPE35 earth terminal for the power cable. The junction box can accommodate up to six fully loaded phase or neutral terminals, with a maximum of ten terminals in total. Labelling is 1, 2, 3 plus 3 x PE. The minimum conductor size is 2.5 mm² stranded and solid. The maximum conductor size is 35 mm² stranded and 16 mm² solid. The maximum operating voltage is 690 Vac and maximum operating current is 100 A.

The entry arrangement is six M20 entries and one M40 entry. Kit contents include one junction box with screw terminals on DIN rail, three M20 stopping plugs, three temporary M20 rain plugs, and one M40 stopping plug. Accessories ordered separately include hazardous-area approved power cable glands, reducers, loose terminals, PI cold lead glands, and insulation entry kits.

This configuration is a strong advantage for projects that must connect larger conductors without compromising enclosure purpose or installation consistency. Instead of selecting an oversized cabinet, installers can use a compact dedicated hazardous-area junction box designed specifically for heat tracing and power cable marshalling tasks.

Accessory Ecosystem and Installation Flexibility

A junction box becomes more valuable when it is supported by compatible accessories. The MF-EX-21 range uses separately ordered glands and connection kits so that the installer can match the accessory to the cable type and diameter. This is important because heating cable systems may include self-regulating cables, constant-power cables, PI cables, MI cables, factory-terminated units, and different power cable sizes.

For the standard MF-EX-21, accessories include support brackets SB-100 and SB-101 for pipe mounting, GL-44-M20-KIT hazardous-area approved glands for PI cold cables with cable diameters from 5.5 mm to 13 mm, and GL-45-M32 hazardous-area approved glands for power cables from 12 mm to 21 mm. Loose terminals include WAGO phase or neutral terminals, earth terminals, end plates, and terminal jumpers. The total number of installed terminals should not exceed ten.

For the MF-EX-21/35MM2 version, power cable gland options include GL-51-M40 for cables from 17 mm to 28 mm, GL-45-M32 for cables from 12 mm to 21 mm, and GL-50-M20 for cables from 5.5 mm to 13 mm. A REDUCER-M40/32-EEXE accessory can convert an M40 male entry to M32 female use. Loose terminal accessories include WDM-PHASE-35, WDM-EARTH-10, WDM-EARTH-35, WDM-PLATE, WDM-JUMPER-35-2, and WDM-JUMPER-35-3. For PI cold cables, GL-44-M20-KIT and IEK-20-PI are available. For MI cold cables supplied as factory-terminated units, the necessary gland may already be present.

This accessory approach gives the product a competitive advantage over fixed-configuration alternatives. Projects can standardize the box while adjusting glands, reducers, and terminal accessories to match the exact cable schedule. This reduces engineering complexity and avoids unnecessary enclosure variations.

Mounting and Field Installation

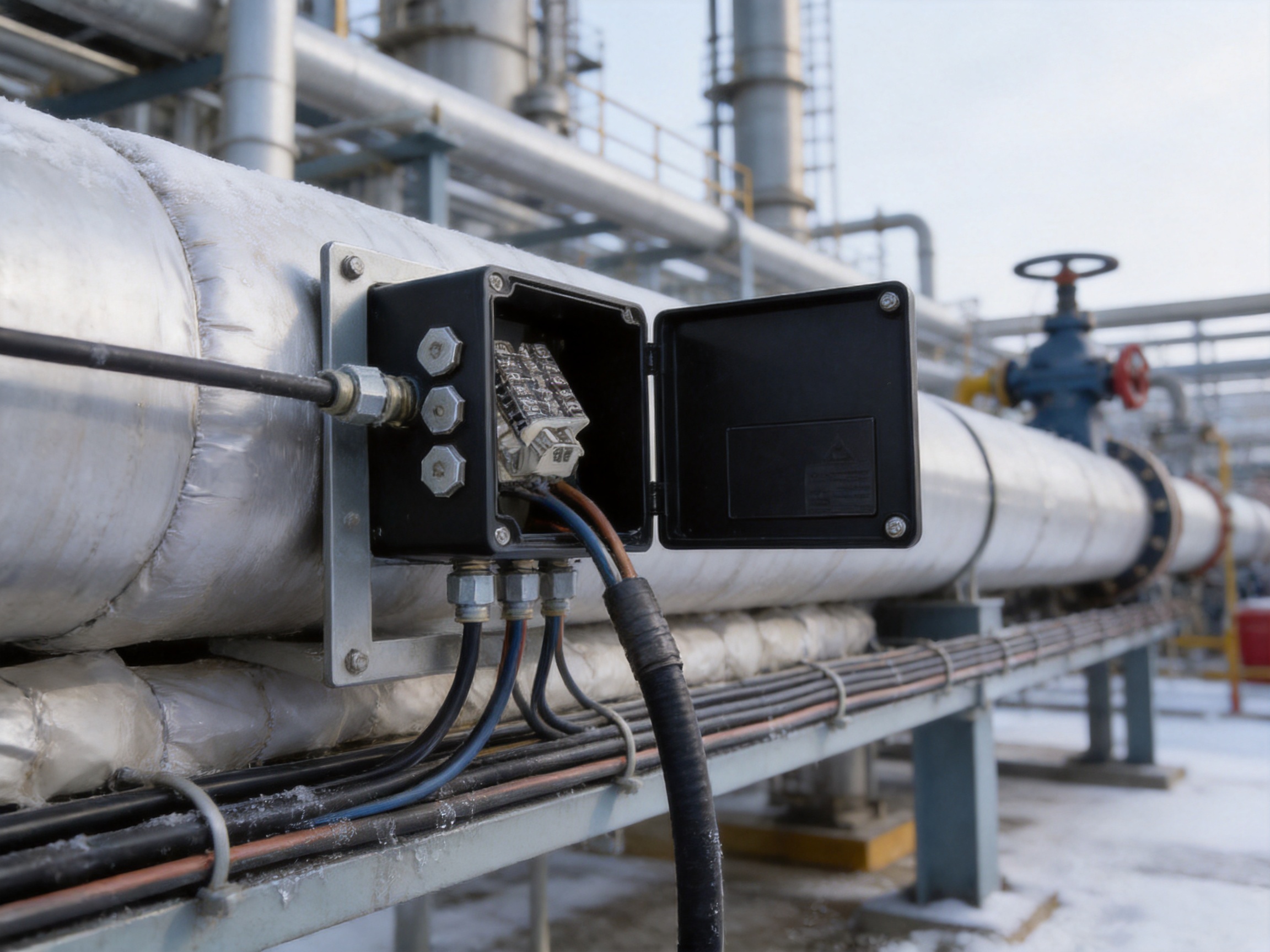

The standard product can be mounted on a wall or pipe using four holes moulded into the base of the box. For pipe mounting, one of the standard support brackets can be used. The 35 mm² version is described for wall mounting via the four moulded base holes. These mounting provisions allow the enclosure to be positioned close to the heating cable connection point, reducing cable strain and simplifying field routing.

Proper installation practices are essential. The installer should select approved glands according to cable type, cable diameter, hazardous-area classification, and environmental exposure. Unused entries should be sealed with the supplied stopping plugs. Temporary rain plugs should be replaced by permanent certified components before commissioning. Cable shields, braids, or earth conductors should be terminated according to the project’s grounding design and applicable standards.

Because the terminals are mounted on DIN rail, wiring can be organized clearly. Terminal jumpers enable different wiring configurations when permitted by the design. Labels should be maintained so that inspection and troubleshooting teams can identify phase, neutral, and protective earth connections without confusion.

Electrical Safety Considerations

The MF-EX-21 is part of the electrical safety chain in a heat tracing system. Correct selection must consider operating voltage, load current, conductor size, cable type, ambient temperature, installation location, and approval requirements. The standard configuration should not exceed its 550 Vac and 53 A ratings. The 35 mm² configuration should not exceed its 690 Vac and 100 A ratings. Terminal count limitations must also be respected to maintain safe spacing and manageable internal wiring.

In heating cable systems, ground-fault protection is often required or strongly recommended depending on local codes and project specifications. The junction box must support correct grounding continuity from the heating cable braid or sheath to the power system protective earth. The presence of dedicated PE terminals supports this requirement.

Maintenance teams should periodically inspect enclosure condition, lid tightness, gland sealing, cable strain relief, terminal security, and signs of moisture or overheating. Captive stainless steel screws help make inspection easier because the lid hardware remains attached. The silicone gasket should be checked for correct seating and damage after repeated openings.

Manufacturing Strength Behind the Product

The performance of a junction box depends not only on its design but also on manufacturing discipline. Santo Thermal Control Technology Co., Ltd. operates in Jiangsu Province, a region associated with China’s electric heating belt industry. The company is engaged in research, design, production, and manufacturing of automatic temperature-control electric heating belts, self-limiting electric heating belts, heat tracing belts, constant-power electric heating belts, glass fiber electric heating belts, MI cables, and related electric heating products.

The company’s broader heat tracing product portfolio supports the development of compatible accessories such as junction boxes, glands, connection kits, and insulation entry kits. This system-level manufacturing experience is important. A company that manufactures heating cables and related accessories can better understand the real installation problems faced by engineers and contractors. Cable diameter variation, braid termination, cold lead handling, hazardous-area sealing, power distribution, and field maintenance are all practical issues that influence junction box design.

The organization has more than 35 years of industry experience, large annual output capability, and a distribution network serving many regions. Its products are used in petroleum, chemical, gas, construction, solar energy, electric heating, geothermal cultivation, snow melting, deicing, heat tracing, and insulation applications. This application diversity strengthens product development because the company receives feedback from different operating environments, including low-temperature outdoor projects and industrial process plants.

Quality system certification is another manufacturing advantage. The company has passed ISO9001 quality system certification, and its products have obtained national CCC certification. It has also obtained explosion-proof certification and EAC Eurasian Union certification. For heat tracing projects, certification experience helps improve documentation, inspection discipline, and product traceability.

Advanced Production and Quality Control Practices

The company emphasizes new product development, technical guidance, scientific management, product quality, and after-sales service. These elements matter for a junction box because industrial customers need more than a one-time shipment. They require consistent production, stable materials, controlled assembly, correct accessory matching, and technical support when designing or installing heat tracing circuits.

Advanced manufacturing for this type of product involves careful material selection, moulding quality, dimensional control of threaded entries, gasket fit, terminal assembly, marking, packaging, and final inspection. The engineered polymer enclosure must maintain mechanical strength and surface characteristics. The lid and base must align properly to compress the silicone gasket. Stainless steel captive screws must secure the lid evenly. DIN rail terminals must be mounted firmly and labelled correctly.

Testing and inspection are particularly important for IP66 products. While the article does not claim a specific factory test on every unit unless required by the production process, the design must support reliable sealing through correct gasket geometry, lid fastening, and entry sealing. Production consistency reduces the risk of enclosure leakage caused by dimensional variation or poor assembly.

The company’s continued investment in development is reflected in its history, including the establishment of an irradiation center, patented heating cable technology development, and the purchase of additional land to build a new factory and product simulation testing laboratory. A product simulation testing laboratory is valuable because heat tracing components may need to be evaluated under temperature changes, electrical loading, moisture exposure, mechanical stress, and installation conditions.

System-Level Compatibility With Heating Cable Products

The MF-EX-21 is part of a larger ecosystem of electric heating products. The company manufactures self-limiting heating strips, constant-power heating strips, silicone rubber heating systems, glass fiber heating strips, electric heating wires, MI cables, snow melting cables, and heating cable accessories. This broad product base allows the junction box to be positioned not merely as a standalone enclosure but as a component within a complete thermal control system.

For example, a pipe freeze protection project may require self-regulating heating cable, power connection kits, end termination kits, insulation entry components, control panels, thermostats, and junction boxes. A high-temperature industrial process line may require MI or PI heating cable and larger terminal capability. A snow melting project may require robust power distribution and weather-resistant outdoor connections. In each case, the junction box must match the cable construction and installation environment.

The MF-EX-21 range supports this system approach by offering configurations suitable for standard heat tracing connections and larger PI or MI cable terminations. This compatibility reduces procurement fragmentation. Instead of sourcing the heating cable from one supplier and field boxes from another supplier with limited understanding of trace heating, a project can benefit from a manufacturer experienced in the full heat tracing chain.

Why Material Selection Matters

In hazardous and industrial environments, material selection is more than an engineering detail. Electrostatic charge-resistant glass-filled engineered polymer supports the enclosure’s role in areas where static control is important. Glass-filled polymer improves mechanical properties compared with many ordinary plastics, offering better rigidity and durability for field use. The black construction also provides a professional industrial appearance suitable for process facilities.

Silicone rubber is selected for the sealing gasket because it retains flexibility across wide temperature conditions. Heat tracing systems often operate in environments that cycle between cold night temperatures, heated process conditions, direct sunlight, and seasonal extremes. A low-quality gasket material may harden, crack, or lose compression over time. A silicone gasket helps maintain sealing performance when properly installed and maintained.

Stainless steel captive screws reduce corrosion concerns compared with ordinary carbon steel screws, especially in outdoor or humid environments. Captive design means screws remain with the lid during maintenance, reducing loss and improving service efficiency. These details show that the product is designed for real industrial use rather than only for catalog specifications.

Operational Benefits for Engineers and Contractors

Engineers benefit from clear ratings, defined entries, and known accessory options. This supports faster design decisions and more accurate material take-offs. Contractors benefit from the standardized enclosure layout and DIN rail terminals, which reduce field uncertainty. Maintenance teams benefit from clear terminal labelling, accessible wiring, robust sealing, and replaceable or expandable terminal accessories within specified limits.

Owners and operators benefit from long-term reliability. Connection points are among the most common locations for electrical issues in outdoor heating cable systems. Moisture ingress, poor grounding, loose terminals, cable strain, and incompatible glands can all create failures. By using a purpose-built junction box, the project reduces these risks and improves the maintainability of the heat tracing network.

The product also supports inventory simplification. A facility can standardize on the MF-EX-21 for many moderate-load circuits and use the MF-EX-21/35MM2 where larger conductors are required. Accessories can then be stocked according to cable types and gland sizes. This is more efficient than maintaining many unrelated junction box models with different entry patterns and terminal systems.

Comparison With Common Competitor Approaches

Some competing products focus only on enclosure protection and leave heating cable compatibility to the installer. This can result in mismatched glands, awkward terminal layouts, and additional field labor. The MF-EX-21 improves on this by providing heat tracing-oriented entries, terminal arrangements, and accessory references.

Other competitors may provide only one terminal capacity. This can force the user to oversize the box for small circuits or use an unsuitable box for larger conductor requirements. The MF-EX-21 range offers both a standard 10 mm² spring terminal configuration and a high-capacity 35 mm² screw terminal configuration, enabling better selection according to load.

Some lower-cost enclosures may use ordinary plastic materials, non-captive screws, limited sealing, or insufficient temperature ratings. The MF-EX-21 uses electrostatic charge-resistant glass-filled engineered polymer, silicone rubber sealing, stainless steel captive screws, and IP66 protection. These features offer a stronger foundation for industrial and hazardous-area service.

Competitor products may also lack a full heat tracing manufacturing background. When a supplier produces only enclosures, it may not fully account for the way heating cable braids, cold leads, insulation entry kits, and PI or MI terminations are handled in the field. The manufacturer behind the MF-EX-21 has direct experience across heating cable product families, which supports more practical product design and technical guidance.

Procurement and Ordering Considerations

The standard order reference is MF-EX-21, with part number 2000-M20 and approximate weight of 1.2 kg. The high-capacity order reference is MF-EX-21/35MM2, with part number 2000-M21 and approximate weight of 1.9 kg. When ordering, buyers should confirm the terminal configuration, required cable glands, connection kits, support brackets, reducers, terminal jumpers, insulation entry kits, and country-specific approval requirements.

It is important to note that M20 connection kits are ordered separately depending on the type of heating cable used. This ensures the correct gland and termination method are selected for the actual cable construction. For PI cold cables, GL-44-M20-KIT may be used for cable diameters from 5.5 mm to 13 mm, and IEK-20-PI may be required. For power cables, gland selection depends on cable diameter and entry size. For MI cold cables in factory-terminated units, the gland may already be present.

Before procurement, engineering teams should review heat tracing circuit drawings, load calculations, conductor sizes, hazardous-area classifications, environmental conditions, and installation method. This prevents under-specification and ensures that the junction box is selected according to real field requirements.

Maintenance and Lifecycle Value

The lifecycle value of a junction box is measured by more than initial price. A low-cost product that allows moisture ingress, terminal loosening, poor cable sealing, or difficult maintenance can create expensive downtime. The MF-EX-21 contributes lifecycle value through durable materials, IP66 sealing, accessible terminals, multiple entry options, and compatibility with approved accessories.

During maintenance, technicians should visually inspect the enclosure body and lid, verify screw tightness, confirm that glands and stopping plugs remain secure, check for signs of water ingress, confirm terminal integrity, and verify grounding continuity. If the box is opened, the silicone gasket should be reseated carefully before closing. The use of captive screws helps prevent lost hardware during these inspections.

For facilities operating many heat tracing circuits, consistent junction box selection simplifies maintenance training. Technicians become familiar with the internal layout, terminal style, accessory types, and inspection process. This familiarity reduces maintenance time and improves safety.

Q&A Section

What is the main purpose of the MF-EX-21 junction box?

The MF-EX-21 is used to make electrical connections between power cables, heating cables, and cold cables in industrial heat tracing systems. It can function as a power supply box, end-box, splice box, or marshalling box depending on the circuit configuration.

Is the product suitable for hazardous areas?

Yes. The product is designed for use in hazardous-area applications and has listed approvals for Russia, Kazakhstan, and Belarus. For other countries or regions, approval requirements should be confirmed with the supplier or local representative before installation.

What is the difference between the standard version and the 35 mm² version?

The standard MF-EX-21 uses spring-type terminals for conductors up to 10 mm², with ratings of 550 Vac and 53 A. The MF-EX-21/35MM2 uses screw terminals for larger conductors, supporting up to 35 mm² stranded conductors, 690 Vac, and 100 A.

Can the box be used with PI and MI heating cables?

Yes. The standard version can be used with appropriate M20 connection kits according to cable type. The MF-EX-21/35MM2 version is specifically suitable when large terminal sizes are required for PI and MI series heating cables.

What cable entries are provided?

The standard configuration provides six M20 entries and one M32 entry. The high-capacity configuration provides six M20 entries and one M40 entry.

Are cable glands included?

Connection kits and many glands must be ordered separately according to cable type and diameter. The kit includes stopping plugs and temporary rain plugs, but the final installation should use suitable approved glands and accessories.

What level of environmental protection does the box provide?

Both configurations provide IP66 ingress protection, making them suitable for demanding industrial environments where dust and water exposure must be controlled.

What materials are used in the enclosure?

The box and lid are made from electrostatic charge-resistant glass-filled engineered polymer. The sealing gasket is silicone rubber, and the lid fixing screws are stainless steel captive screws.

Why are DIN rail terminals important?

DIN rail terminals provide organized wiring, easier inspection, clear labelling, and practical maintenance. The standard version uses spring-type terminals, while the high-capacity version uses screw terminals for larger conductors.

Can the product be pipe mounted?

The standard configuration can be wall or pipe mounted using the four holes moulded into the base and suitable support brackets such as SB-100 or SB-101. The high-capacity version is described for wall mounting through the moulded base holes.

Conclusion

The MF-EX-21 Multi-Purpose Junction Box is a practical and technically capable solution for hazardous-area heat tracing connections. It combines robust material construction, IP66 protection, flexible cable entries, DIN rail terminal architecture, and configurations for both standard and high-capacity applications. Its ability to connect power cables, heating cables, and cold leads makes it useful across many industrial heat tracing layouts, including power supply boxes, end-boxes, splice boxes, and marshalling boxes.

Its competitive strength comes from its purpose-built heat tracing design, hazardous-area suitability, accessory compatibility, terminal flexibility, and support from a manufacturer with deep experience in electric heating products. Compared with generic junction boxes, it offers better alignment with heating cable installation requirements and more practical options for field wiring. Compared with single-capacity alternatives, it provides both standard spring-terminal and high-capacity screw-terminal solutions.

For industrial users seeking safe, maintainable, and efficient connection points in heat tracing systems, the MF-EX-21 range offers a dependable platform. When properly selected, installed with approved glands and accessories, and maintained according to site procedures, it can contribute significantly to the reliability and safety of electric heat tracing networks.
