Illuminated Tail Ends for Industrial Electric Heat Tracing Systems

Industrial electric heat tracing depends not only on the heating cable itself, but also on the quality of every termination, junction, seal, and mechanical protection component in the circuit. A heat tracing system may be designed with the correct watt density, voltage rating, insulation thickness, and control method, yet still underperform if the end termination is weak, poorly sealed, difficult to install, or unable to tolerate harsh field conditions. The FAST-100-E tail end and the FAST-100-L-E illuminated tail end are engineered to solve these practical problems for industrial parallel heating cable installations, including hazardous and ordinary area applications.

These tail ends are designed for use with industrial parallel heating lines such as SANTOUFA, UFB, UFC, UFO, ABB, ACC, ADD, and AFF heating cables. The FAST-100-E provides a strong, sealed, non-illuminated end termination, while the FAST-100-L-E adds a built-in green LED indicator module for visual operating confirmation. Both versions are built for long-term service, outdoor exposure, and demanding industrial environments where moisture, vibration, impact, ultraviolet radiation, and maintenance limitations can affect system reliability.

Product Overview

The FAST-100-E and FAST-100-L-E are tail end kits used to terminate the end of an industrial electric heat tracing circuit. In a parallel heating cable system, the tail end is a critical safety and performance component. It seals the cable end, provides strain relief, protects conductive parts, supports insulation penetration, and helps prevent moisture ingress into the heating cable construction. If the termination is compromised, electrical leakage, corrosion, insulation failure, nuisance tripping, or heat tracing downtime may occur.

The FAST-100-E is the standard tail end without an indicator light. It is suitable for installations where visual circuit indication is not required at the end termination point or where indication is provided elsewhere in the control panel or junction box. The FAST-100-L-E is the illuminated version. It includes a row of ultra-bright green LEDs that provide clear visibility from multiple viewing angles. The illuminated module allows operators and maintenance personnel to quickly confirm that voltage is present at the end of the heat tracing circuit, improving inspection efficiency and helping identify circuit problems faster.

Both models are designed for hazardous and ordinary locations, indoor or outdoor use, and demanding industrial service. They are made with robust molded parts with a wall thickness of approximately 4 mm, helping the enclosure resist mechanical damage during installation and operation. The design also includes tension relief components that hold the heating wire securely in position, reducing mechanical stress on the cable end.

Why Tail End Quality Matters in Heat Tracing

Electric heat tracing is commonly used for freeze protection, process temperature maintenance, viscosity control, condensation prevention, and snow or ice mitigation. In petroleum, chemical, gas, construction, solar energy, geothermal cultivation, and general industrial facilities, heat tracing circuits may operate continuously for long periods in difficult environments. Cables may be exposed to thermal cycling, vibration, moisture, corrosive vapors, cleaning processes, and seasonal temperature extremes.

The tail end is often located at a remote point on the pipe, tank, valve, or instrument line. It may be hidden beneath insulation and cladding or positioned in an area that is hard to access. Because of this, a tail end must be reliable from the beginning. It must seal the cable end effectively and resist loosening, cracking, moisture penetration, and electrical deterioration. A tail end that requires frequent maintenance increases labor cost and reduces system dependability.

The FAST-100-E and FAST-100-L-E address these issues through a practical industrial design. They combine mechanical strain relief, double sealing treatment, a drying chamber concept, non-curing sealant, molded impact-resistant construction, and IP65 protection. The result is a termination solution that supports long service life and reduces the risks associated with field-made or low-grade terminations.

Key Product Advantages

Strong Molded Construction

One of the most important advantages of these tail ends is their sturdy molded construction. The molded parts are approximately 4 mm thick, which gives the product a solid mechanical body. In real industrial installations, accessories are frequently exposed to bumps from tools, contact with insulation covers, pipe movement, and accidental impact during maintenance. Thin or fragile housings can crack, deform, or lose their sealing performance. A thicker molded body provides better durability and contributes to consistent protection over time.

Double Sealing for Moisture Control

Moisture is one of the leading causes of heat tracing accessory failure. Water can migrate through cable ends, condense under insulation, or enter damaged enclosures. Once moisture reaches electrical conductors or bus wires, it may cause corrosion, leakage current, or insulation resistance failure. The FAST-100-E and FAST-100-L-E use two sealing treatments. First, a drying chamber is created for the heating wire. Second, a sealing sleeve filled with non-curing sealant is positioned above the cable end inside the drying chamber. This layered approach improves moisture resistance and creates a more stable termination environment.

Secure Tension Relief

The heating wire can be fixed in place through tension relief components. The specified tension relief is greater than 250 N, providing strong mechanical holding capability. This is especially valuable where the cable may be pulled during installation, where thermal expansion and contraction occur, or where vibration is present. A secure cable hold helps protect the internal termination and reduces stress on electrical contact points.

Hazardous Area Suitability

Industrial heat tracing is often installed in areas where flammable gases, vapors, or dust may be present. Accessories used in these environments must be designed and certified for safe operation. These tail ends are certified for use in hazardous areas as well as ordinary locations, making them suitable for a wide range of industrial applications. This reduces specification complexity because one robust accessory family can support both standard and more demanding installation zones.

Illuminated End-of-Line Indication

The FAST-100-L-E version includes a green LED indicator module. This feature is especially useful for large facilities with many heat tracing circuits. A maintenance technician can visually check the end point of a circuit and confirm that power reaches the termination. This helps distinguish between upstream power issues, controller problems, cable faults, and local termination issues. The LEDs are ultra-bright, visible from a wide angle, and built with industrial-grade electronic components for long life and good moisture blocking performance.

Wide Environmental Tolerance

The product is designed for a temperature range from -50 °C to +40 °C, with a minimum installation temperature of -50 °C. This allows installation and operation in very cold climates where freeze protection is most critical. The product also demonstrates ultraviolet stability, with no degradation after 1000 hours, and offers outstanding solvent resistance. These characteristics are important for outdoor pipework, chemical plants, refineries, loading terminals, and exposed industrial structures.

Technical Specification Summary

Item	FAST-100-E	FAST-100-L-E
Function	Non-illuminated tail end	Illuminated tail end with green LED indicator
Maximum working voltage	254 V	254 V
Temperature range	-50 °C to +40 °C	-50 °C to +40 °C
Minimum installation temperature	-50 °C	-50 °C
Total height	Approximately 171 mm	Approximately 197 mm
Outside diameter	Approximately 46 mm, suitable with 100 mm insulation material	Approximately 66 mm
Protection grade	IP65	IP65
Impact resistance	EN 50014, at least 7 joules	EN 50014, at least 7 joules
UV stability	No degradation after 1000 hours	No degradation after 1000 hours
Solvent resistance	Outstanding	Outstanding
Tension relief	Greater than 250 N	Greater than 250 N
Light source	Not applicable	Green LEDs
Indicator rated voltage range	Not applicable	208 to 230 Vac, 50 or 60 Hz
Indicator power consumption	Not applicable	Less than 2 W
Required tools	Cable cutter, wire pliers, screwdriver	Cable cutter, wire pliers, screwdriver, crimping tool, pointed nose pliers

FAST-100-E: Standard Tail End for Reliable Termination

The FAST-100-E is the practical choice when a robust, sealed, and compact termination is required without local indication. Its design is simple, durable, and easy to disassemble when service access is needed. The kit composition includes one tail end, one cable tie, and lubricant, providing the essential components needed for installation.

Compared with basic termination caps or field-fabricated solutions, the FAST-100-E offers a more controlled sealing method and stronger mechanical protection. Its housing is designed for industrial use rather than light-duty environments. The 4 mm molded construction, IP65 rating, and strain relief performance help ensure that the cable end remains protected beneath insulation and cladding. The product can be used with 100 mm insulation material, which is common in industrial pipe insulation systems.

Another advantage of the FAST-100-E is service practicality. Accessories that are difficult to open, position, or inspect can increase installation time and create inconsistency between installers. The easy-to-disassemble design supports more efficient field work. When multiple heat tracing circuits are installed across a plant, even small time savings per termination can become significant. Consistent installation also reduces the chance of errors.

FAST-100-L-E: Illuminated Tail End for Faster Inspection

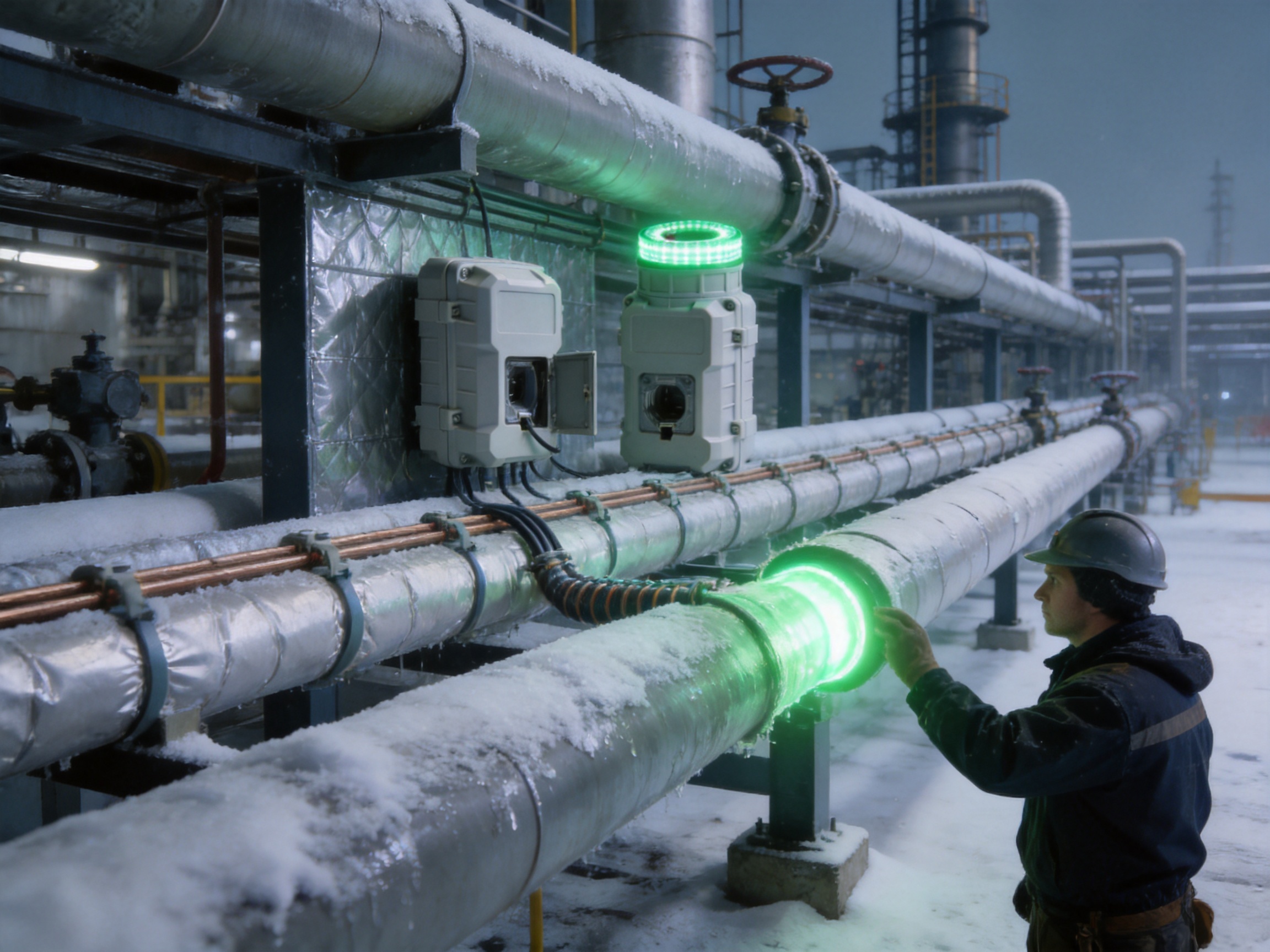

The FAST-100-L-E adds an important visual function to the same industrial termination concept. Its LED indicator module uses ultra-bright green LEDs with long service life and visibility from any angle. The green light provides a simple and immediate signal that voltage is available at the end of the heating circuit. This is valuable during commissioning, routine inspections, troubleshooting, and seasonal start-up checks.

In a large heat tracing network, a circuit may pass through long pipe runs, multiple bends, valves, supports, and insulation sections. If a heating line fails to maintain temperature, technicians need to determine whether the problem is caused by power supply, controller settings, cable damage, insulation loss, improper circuit length, or a termination fault. An illuminated tail end gives immediate field feedback. If the end indicator is lit, power has reached the end of the circuit. If it is not lit, technicians can investigate upstream causes more quickly.

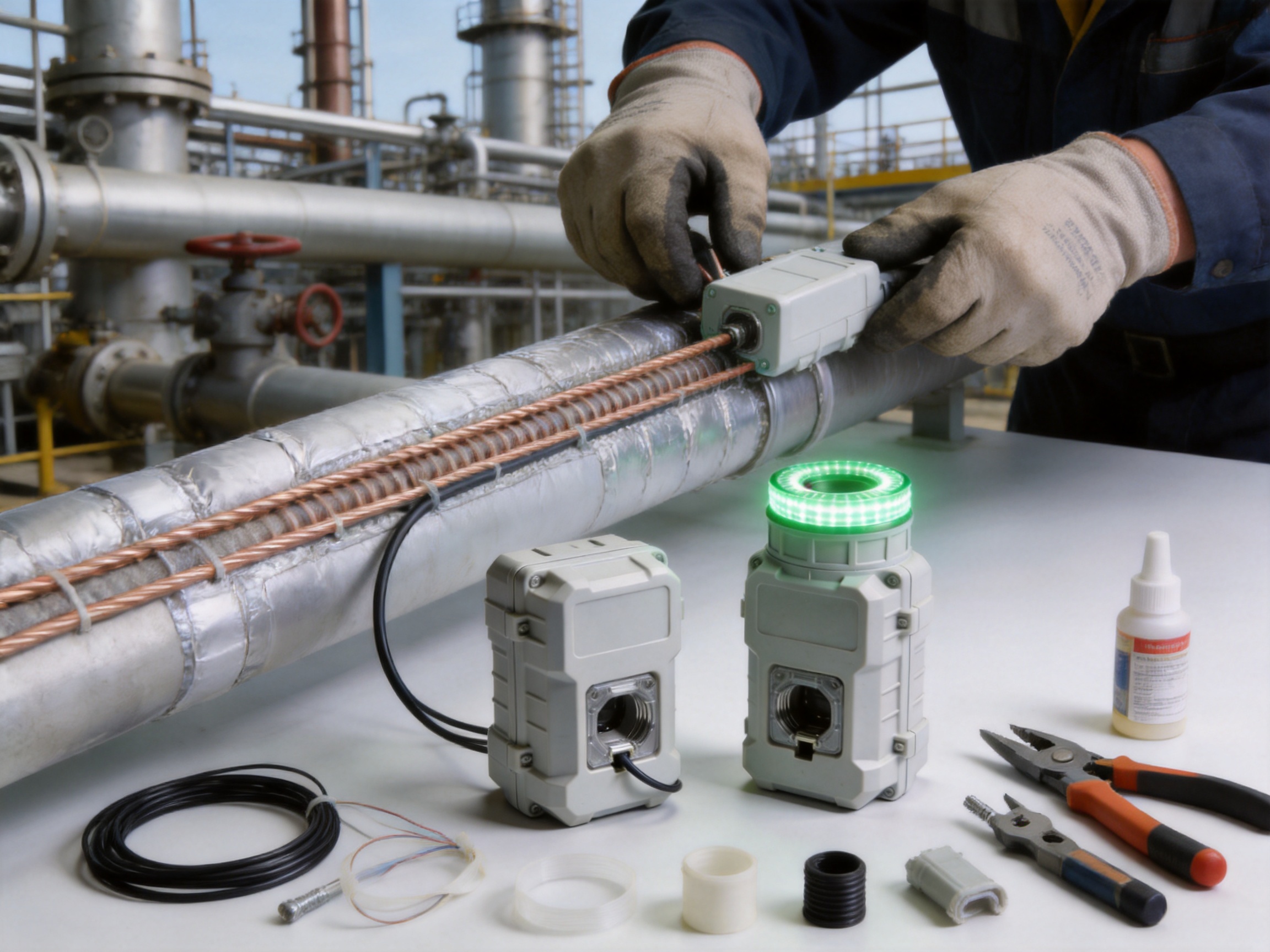

The FAST-100-L-E kit includes one tail end with indicator light, one cable tie, lubricant, two spare crimping sleeves, and two ABB crimping sleeves. The additional components support electrical connection and field installation requirements. The illuminated version requires additional tools, including a crimping tool and pointed nose pliers, because of the LED module connection process.

Advantages Over Conventional Competitor Accessories

Many heat tracing accessory failures result from insufficient sealing, weak mechanical housing, poor strain relief, limited environmental resistance, or lack of installation consistency. The FAST-100-E and FAST-100-L-E provide advantages in each of these areas. Compared with simpler competitor tail ends, they offer a more complete protection system, not just a cap or closure.

First, the double sealing treatment provides a stronger defense against moisture. Conventional accessories may depend on a single seal, heat shrink tube, or adhesive layer. In demanding applications, one sealing barrier may not be enough, especially when the cable is exposed to repeated thermal cycling. By combining a drying chamber and a sealing sleeve with non-curing sealant, the FAST design creates layered protection that is more tolerant of field conditions.

Second, the mechanical construction is more robust than many light-duty accessories. Thick molded components improve impact resistance and help preserve enclosure geometry. If a housing deforms, the seal can become unreliable. The specified impact resistance of at least 7 joules under EN 50014 reflects a design intended for industrial work sites rather than controlled laboratory conditions.

Third, the tension relief rating above 250 N provides a measurable mechanical advantage. Installers sometimes pull cables during positioning, and pipe systems may shift slightly due to expansion, contraction, or vibration. Without proper tension relief, cable movement can compromise the termination. A strong strain relief system reduces this risk.

Fourth, the illuminated model improves operational transparency. Competitor products without end-of-line indication require electrical testing or panel-level interpretation to confirm circuit status. The FAST-100-L-E gives a direct field signal. This reduces inspection time and supports preventive maintenance programs, especially in facilities with many heat tracing circuits distributed across long distances.

Fifth, the product family supports use in both hazardous and ordinary areas. This simplifies inventory and project specification. Rather than selecting different accessories for different zones, engineers and contractors can apply one high-performance solution across multiple plant areas, subject to project requirements and applicable certification rules.

Manufacturing Strength Behind the Product

The quality of a heat tracing accessory is closely connected to the manufacturer’s engineering capability, material control, process discipline, and testing culture. Santo Thermal Control Technology Co., Ltd. is located in Jiangsu Province, an important region for electric heating belt production. The company has extensive experience in research, design, production, and manufacturing of electric heating products, including self-regulating heating cables, constant-power heating cables, glass fiber heating belts, mineral insulated cables, silicone rubber heating systems, snow melting cables, and related accessories.

The company’s manufacturing strength is supported by decades of industry experience and a product portfolio used in petroleum, chemical, gas, construction, solar energy, electric heating, geothermal cultivation, and other industries. This broad application background is important because industrial heat tracing is not a single-use technology. A manufacturer must understand freeze protection, process maintenance, hazardous environments, outdoor exposure, thermal insulation design, electrical safety, and field installation behavior.

The development of reliable accessories such as the FAST-100-E and FAST-100-L-E requires a disciplined production approach. Molded components must be dimensionally consistent, strong, and resistant to environmental degradation. Sealing sleeves and sealant materials must be compatible with heating cable construction. LED modules must be protected against moisture and vibration. Crimping sleeves and strain relief parts must maintain electrical and mechanical integrity. Each of these requirements depends on manufacturing control rather than product appearance alone.

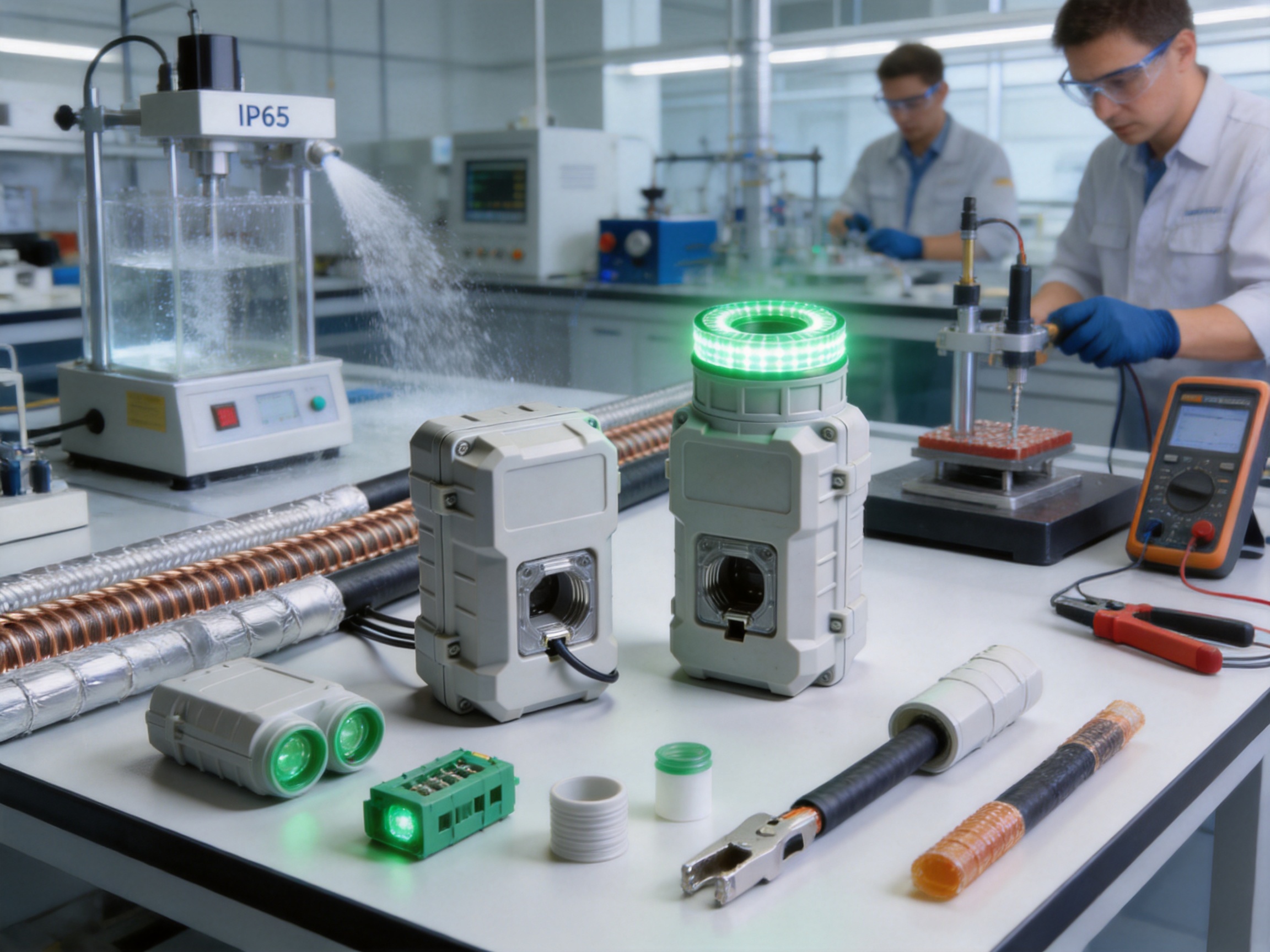

Advanced Production and Quality Control

The company’s production philosophy emphasizes new product development, technical guidance, scientific management, product quality, and after-sales service. It has passed ISO9001 quality system certification, and its products have obtained national CCC certification. The company has also obtained explosion-proof certification and EAC Eurasian Union certification for relevant products, reflecting its focus on compliance for demanding markets.

Advanced manufacturing for electric heating accessories involves multiple process stages. Material selection comes first. The enclosure must resist impact, ultraviolet exposure, solvents, cold temperatures, and aging. The sealing system must remain stable without hardening or cracking prematurely. Electrical components, especially in the illuminated model, must tolerate voltage conditions, electromagnetic interference, vibration, and shock.

Next comes precision forming and component preparation. Molded parts must maintain correct wall thickness and assembly geometry. Inconsistent molding can create weak points, poor sealing surfaces, or installation difficulties. The approximately 4 mm molded structure of these tail ends demonstrates an emphasis on strength and service durability. Cable entry geometry, sealing sleeve dimensions, and internal chamber shape all influence final performance.

Assembly control is equally important. The FAST-100-E and FAST-100-L-E rely on correct positioning of the heating wire, proper use of lubricant, cable tie placement, strain relief engagement, and sealing sleeve installation. In the illuminated model, crimping quality and LED module sealing are also critical. A manufacturer with experience in both heating cables and accessories can optimize these details because it understands how the accessory interacts with the cable construction.

Testing and inspection complete the process. Product attributes such as IP65 protection, mechanical strain relief, impact resistance, UV stability, solvent resistance, electromagnetic immunity, vibration resistance, and shock resistance are not achieved by chance. They require design validation and process control. For the FAST-100-L-E, the LED module conforms to electromagnetic immunity and radiation requirements based on EN 50082-2:1995 and EN 50081-1:1991, while seismic and impact resistance are aligned with IEC 60068-2-6 and IEC 60068-2-7 requirements.

Designed for Hazardous and Ordinary Locations

In industrial heating applications, hazardous area suitability is a major advantage. Facilities such as refineries, chemical plants, natural gas stations, storage terminals, and process units may include zones where explosive atmospheres can occur. Electrical accessories in such locations must be designed to minimize ignition risk and maintain safe operation under specified conditions.

The FAST-100-E and FAST-100-L-E are certified for use in hazardous areas and ordinary locations, both indoor and outdoor. This versatility helps engineering teams standardize heat tracing designs. It also helps distributors and contractors manage inventory. A tail end that can be used in a wide range of conditions is more valuable than a product limited to benign environments.

Hazardous-area use also places greater emphasis on installation quality. The end termination must protect electrical components and prevent moisture or contaminants from reaching conductive parts. The double sealing structure, strong housing, and strain relief system are therefore not only convenience features; they are essential elements in a reliable safety-oriented design.

Environmental Resistance and Long-Term Durability

Outdoor heat tracing accessories must tolerate weathering. Ultraviolet radiation can weaken plastics. Rain, snow, and ice can attack seals. Solvents and industrial chemicals can degrade materials. Low temperatures can make some materials brittle. The FAST-100-E and FAST-100-L-E are designed to resist these environmental stresses.

The product’s UV stability, with no degradation after 1000 hours, supports outdoor service. Its outstanding solvent resistance is valuable in plants where hydrocarbons, cleaning agents, chemical vapors, and process fluids may be present. The IP65 protection grade indicates protection against dust ingress and water jets, which is suitable for many industrial pipe tracing environments when installed correctly.

The temperature range from -50 °C to +40 °C and minimum installation temperature of -50 °C are particularly important for freeze protection markets. Many heating systems are installed or repaired during cold seasons, sometimes under urgent conditions. Products that can be installed at very low temperatures give contractors and operators more flexibility.

Installation Practicality

A strong industrial accessory should not be unnecessarily complicated. The FAST-100-E requires basic tools: cable cutter, wire pliers, and screwdriver. The FAST-100-L-E requires these tools plus a crimping tool and pointed nose pliers because of its indicator connection. The kit compositions are designed to support field installation without excessive parts.

The easy-to-disassemble structure offers an advantage during installation and maintenance. In real projects, installers may need to reposition a cable, inspect a connection, or verify component placement. Accessories that cannot be opened without damage may lead to wasted materials or improvised field modifications. A serviceable design helps maintain installation quality.

The small pipe adapter option is suitable for pipes up to 1 inch, or DN 25. This is useful because heat tracing systems are often installed on small-bore instrument lines, impulse lines, sampling lines, drains, and utility piping. A proper adapter improves fit and mechanical stability on smaller pipe diameters.

Applications Across Industries

The FAST-100-E and FAST-100-L-E are suitable for industrial parallel heating cable systems in multiple sectors. In petroleum and chemical facilities, they support freeze protection and process temperature maintenance on pipelines, pumps, valves, tanks, and loading equipment. In gas infrastructure, they help protect regulators, condensate lines, and metering systems. In construction and building services, they can support pipe freeze protection and specialized heating circuits. In solar energy systems, heat tracing may be used to protect water lines and process fluids from freezing. In geothermal cultivation and agricultural heating, reliable cable termination helps maintain stable operation in humid or outdoor environments.

The illuminated FAST-100-L-E is especially useful where visual inspection is part of the maintenance routine. Large facilities often include hundreds or thousands of heat tracing points. A visible green LED at the end of a circuit helps maintenance teams confirm status quickly without opening enclosures or performing immediate electrical measurements. This can be valuable during winterization checks, post-maintenance verification, start-up procedures, and emergency inspections after power interruptions.

The non-illuminated FAST-100-E remains ideal where compactness, simplicity, and robust sealing are the main requirements. It is also a cost-effective option where monitoring is centralized at a panel or where local indication is not necessary.

Compatibility With Industrial Parallel Heating Lines

Compatibility is a major practical advantage. These tail ends can be used with all SANTOUFA, UFB, UFC, UFO, ABB, ACC, ADD, and AFF industrial parallel heating lines. For contractors and plant maintenance teams, broad compatibility reduces confusion. It allows the same termination solution to support multiple heating cable types across different projects or facility areas.

Parallel heating cables are widely used because they can often be cut to length in the field and configured around complex pipe layouts. However, field flexibility increases the importance of reliable terminations. Every cut end must be properly sealed and protected. A high-quality tail end ensures that the flexibility of the cable does not become a weakness in the system.

LED Module Performance in the Illuminated Model

The FAST-100-L-E indicator module uses green LEDs with a rated voltage range of 208 to 230 Vac at 50 or 60 Hz and power consumption below 2 W. Low consumption is beneficial because the indicator provides visual feedback without adding meaningful load to the circuit. The LEDs have a long lifespan and high visibility from multiple angles, which supports practical field inspection.

Industrial-grade electronic sealing is essential. An indicator is only useful if it remains reliable in the same environment as the heating cable. The module is designed to block moisture effectively, and it is tested for electromagnetic immunity and radiation performance. It also conforms to vibration and shock resistance requirements, supporting use in process facilities, pipe racks, and equipment areas where mechanical disturbance may occur.

Spare Parts and Maintenance Support

Maintenance planning is easier when spare parts are available. The sealing sleeve for the FAST-100-E tail end can be ordered separately. The M-100-E sealing sleeve spare part is supplied as FAST-100-BOOT, five pieces per pack, with a package including five sealing sleeves and five cable ties. The pack weight is approximately 140 g.

This spare part approach helps reduce downtime. If a sealing sleeve must be replaced during inspection or repair, maintenance teams can use a proper component rather than improvising. Proper spare parts preserve product performance and support compliance with installation standards.

Company Experience and Industry Capability

Santo Thermal Control Technology Co., Ltd. has more than 35 years of industry experience and a broad production base for electric heating products. The company’s main products include constant-power electric heating strips, self-limiting electric heating strips, silicone rubber electric heating strips, glass fiber electric heating strips, electric hot wires, mineral insulated cables, snow melting cables, tracked heaters, and electric heating strip accessories. This broad capability allows the company to understand not only individual accessories, but complete heating systems.

The company’s development history reflects continuous investment in technology. It began with Desheng Electric Heating Instrument Factory in 2000, passed ISO9001:2000 certification in 2002, established an irradiation center in 2013, developed advanced self-limiting temperature nano far-infrared heating technology in 2014, established the SANTO brand in 2016, obtained explosion-proof and EAC certifications, developed carbon fiber parallel heating cable technology in 2017, expanded public recognition in 2018, and continued factory and laboratory expansion in later years.

The company reports annual output above 10,000 units, a distributor network above 2,000, and business coverage in more than 85 areas. These figures indicate manufacturing capacity and market experience. For industrial customers, supplier stability matters. Heat tracing systems are often installed as long-term infrastructure, and customers need confidence that technical support, replacement parts, and compatible products will remain available.

How the Product Supports Total System Reliability

Heat tracing reliability is a system-level result. The cable, insulation, control method, power connection, junction box, tail end, sensor placement, and maintenance program all contribute. The FAST-100-E and FAST-100-L-E improve reliability at the circuit endpoint, which is one of the most vulnerable parts of a heat tracing system.

By sealing the cable end, the tail end helps protect insulation resistance. By providing strain relief, it reduces mechanical stress. By resisting UV, solvents, impact, and low temperatures, it supports environmental durability. By offering LED indication in the FAST-100-L-E, it improves maintainability and diagnostic speed. By being suitable for hazardous and ordinary areas, it supports safer and more standardized project design.

These benefits create measurable value. Fewer termination failures mean fewer maintenance interventions. Faster inspection means lower labor time. Better sealing means improved electrical safety. More durable construction means longer accessory life. In facilities where unplanned downtime is expensive, these advantages are often more important than the initial accessory cost.

Selection Guidance

Choose the FAST-100-E when the primary requirement is a strong, sealed, non-illuminated end termination for compatible industrial parallel heating cables. It is suitable where circuit status is monitored elsewhere or where local indication is not required. It offers a compact height of approximately 171 mm and an outside diameter of approximately 46 mm.

Choose the FAST-100-L-E when visual end-of-line indication is beneficial. It is recommended for critical circuits, remote circuits, circuits that require frequent inspection, or sites where maintenance teams benefit from quick visual confirmation. It has a total height of approximately 197 mm and an outside diameter of approximately 66 mm. Its green LED module supports fast status checks and troubleshooting.

For small pipe applications up to DN 25, the small pipe adapter should be considered. For maintenance stock, spare sealing sleeves and cable ties can be kept on hand to support repair and replacement work.

Best Practices for Use

Proper installation remains essential. Installers should follow the product instructions, use the required tools, and verify compatibility with the heating cable type and project requirements. Cable ends should be prepared carefully to avoid conductor damage. The heating wire should be fixed through the tension relief components. The sealing sleeve should be positioned correctly with the non-curing sealant in place. The tail end should be installed on the pipeline and routed through the insulation layer as intended.

For the illuminated FAST-100-L-E, crimping should be performed with the correct tool to ensure reliable electrical connection. After installation, the LED indication should be checked under the correct voltage conditions. For both models, insulation resistance testing and circuit commissioning should follow applicable heat tracing standards and site procedures.

Periodic inspection should include visual checks for housing damage, proper position, cladding condition, and moisture exposure. In the illuminated model, the green LED should be checked during routine inspection. Any damaged accessory should be replaced with approved components rather than repaired with unsuitable materials.

Q&A Section

What is the main purpose of the FAST-100-E and FAST-100-L-E?

Their main purpose is to terminate the end of compatible industrial parallel electric heating cables. They seal the cable end, provide mechanical strain relief, protect the termination from moisture and impact, and support safe long-term heat tracing operation.

What is the difference between the FAST-100-E and the FAST-100-L-E?

The FAST-100-E is a non-illuminated tail end. The FAST-100-L-E includes a green LED indicator module that shows voltage presence at the end of the circuit. The illuminated model is useful for quick visual inspection and troubleshooting.

Can these products be used outdoors?

Yes. They are suitable for indoor and outdoor use. They have IP65 protection, UV stability with no degradation after 1000 hours, and outstanding solvent resistance, making them appropriate for many outdoor industrial installations.

Are they suitable for hazardous areas?

Yes. The products are certified for use in hazardous areas as well as ordinary locations, provided that installation follows applicable standards, certification conditions, and project requirements.

Why is double sealing important?

Double sealing helps prevent moisture from reaching the cable end and electrical components. The design creates a drying chamber and uses a sealing sleeve filled with non-curing sealant. This layered protection improves reliability in wet, cold, or chemically exposed environments.

What tools are needed for installation?

The FAST-100-E requires a cable cutter, wire pliers, and screwdriver. The FAST-100-L-E also requires a crimping tool and pointed nose pliers because of the LED indicator connections.

What is the maximum working voltage?

Both models have a maximum working voltage of 254 V. The LED indicator in the FAST-100-L-E has a rated voltage range of 208 to 230 Vac at 50 or 60 Hz.

What does the green LED indicate?

The green LED on the FAST-100-L-E indicates that voltage is present at the end of the heat tracing circuit. This helps technicians confirm circuit continuity and power availability during inspection.

How strong is the strain relief?

The tail ends provide tension relief greater than 250 N. This helps protect the cable termination from pulling forces, movement, and vibration.

Are spare parts available?

Yes. The FAST-100-E sealing sleeve can be ordered separately. The spare part package includes five sealing sleeves and five cable ties under the FAST-100-BOOT description.

Conclusion

The FAST-100-E and FAST-100-L-E tail ends are engineered for industrial heat tracing systems where reliability, sealing performance, mechanical strength, and installation practicality are essential. The FAST-100-E provides a robust non-illuminated termination, while the FAST-100-L-E adds high-visibility LED indication for faster inspection and troubleshooting. Both models offer strong molded construction, double sealing, IP65 protection, high strain relief, hazardous-area suitability, UV stability, solvent resistance, and low-temperature installation capability.

Compared with conventional or lighter-duty competitor accessories, these products provide a more complete industrial termination solution. They do not merely close the cable end; they protect it mechanically, seal it against moisture, support safe operation, and improve maintenance efficiency. Backed by a manufacturer with extensive electric heating experience, certified quality systems, broad product capability, and a strong industry presence, the FAST-100-E and FAST-100-L-E are well suited for demanding heat tracing applications in petroleum, chemical, gas, construction, solar energy, geothermal cultivation, and other industrial fields.

References

1. International Electrotechnical Commission. IEC 60068-2-6: Environmental Testing, Vibration Test Methods.

2. International Electrotechnical Commission. IEC 60068-2-7: Environmental Testing, Impact and Shock Test Methods.

3. European Standard EN 50014. Electrical Apparatus for Potentially Explosive Atmospheres, General Requirements.

4. European Standard EN 50082-2:1995. Electromagnetic Compatibility, Generic Immunity Standard for Industrial Environments.

5. European Standard EN 50081-1:1991. Electromagnetic Compatibility, Generic Emission Standard for Residential, Commercial, and Light Industrial Environments.

6. ISO 9001 Quality Management Systems. Requirements and Application Guidelines for Manufacturing Organizations.

7. Industrial Electric Heat Tracing Design and Installation Practice Manuals, Process Heating and Freeze Protection Applications.
