Multi-Purpose Hazardous Area Junction Box for Electric Heat Tracing Systems

Reliable Power Distribution for Demanding Heat Tracing Applications

The MF-EX-21 multi-purpose junction box is designed for industrial electric heat tracing systems that require safe, durable, and flexible electrical connections in hazardous areas. As a power junction box, it provides a practical connection point between power cables, heating cables, and cold leads, helping installers build reliable heat tracing circuits for pipelines, tanks, process equipment, and environmental protection systems.

In heat tracing, the junction box is not a simple accessory. It is a critical interface between the power supply and the heating circuit. A weak enclosure, poor terminal arrangement, unsuitable cable entries, or inadequate sealing can compromise the entire system. The MF-EX-21 addresses these risks through an industrial polymer enclosure, IP66 ingress protection, multiple cable entries, DIN rail-mounted terminals, and configurations suitable for both standard and larger conductor requirements.

The product is especially relevant for users who operate in petroleum, chemical, gas, construction, solar energy, geothermal cultivation, snow melting, anti-freezing, and process temperature maintenance applications. In such environments, a junction box must support electrical safety, mechanical strength, weather resistance, cable-management convenience, and long service life. The MF-EX-21 is built to meet these needs while offering installation flexibility for different heating cable technologies, including PI and MI heating cable systems.

Product Overview

The MF-EX-21 is an industrial polyester junction box for hazardous-area heat tracing installations. It can be used as a power supply box, end box, splice box, marshalling box, or connection box, depending on the system configuration. Its main role is to allow power cables, heating cables, and cold leads to be connected securely inside a protected enclosure.

The standard MF-EX-21 version provides six M20 entries and one M32 entry. It includes a junction box with terminals mounted on a DIN rail, M20 stopping plugs, temporary M20 rain plugs, an M32 stopping plug, and a terminal jumper for different wiring configurations. Cable connection is achieved through DIN rail-mounted spring-type terminals, which help reduce installation time while maintaining reliable contact pressure.

For applications requiring larger terminal capacity, the MF-EX-21/35MM2 version is available. This version is intended for hazardous areas where PI and MI heating cables are used and where larger terminal sizes are required. It provides six M20 entries and one M40 entry, and it uses screw terminals on a DIN rail to support higher current and larger conductor sizes. This makes it suitable for demanding heat tracing circuits and marshalling applications involving larger power cables.

The enclosure can be wall mounted through four molded holes in the base. The standard version can also be pipe mounted when used with a suitable support bracket. This mounting flexibility is important in industrial plants where available space, pipe geometry, insulation thickness, and maintenance access vary from one location to another.

Key Technical Characteristics

Why the Junction Box Matters in Heat Tracing

Electric heat tracing systems are often exposed to moisture, dust, vibration, corrosive atmospheres, thermal cycling, and mechanical impact. The heating cable may perform well, but if the junction point is vulnerable, the system can still fail. The junction box therefore becomes a protective center for power distribution, cable transition, grounding continuity, and inspection access.

In hazardous areas, the importance of proper electrical connection is even greater. Installations must be designed to reduce ignition risk, resist environmental intrusion, and maintain stable electrical performance. The MF-EX-21 uses an electrostatic charge-resistant glass-filled engineered polymer enclosure, a silicone rubber gasket, and stainless-steel captive lid screws to provide a robust structure for industrial service.

A well-designed junction box also improves maintenance efficiency. When terminals are clearly arranged on a DIN rail, technicians can inspect, test, replace, or reconfigure wiring more easily. This reduces downtime and helps prevent wiring errors. The MF-EX-21 supports this requirement with labeled terminal arrangements such as 1, 2, 3, and protective earth terminals, creating a practical layout for three-phase, loop, and marshalling configurations.

Advantages Over Conventional Junction Boxes

Hazardous-Area Suitability

Many conventional industrial junction boxes may be suitable for general electrical wiring but are not optimized for heat tracing in hazardous environments. The MF-EX-21 is specifically intended for hazardous-area heat tracing applications and includes construction details that support safe and dependable operation. Its approval coverage for Russia, Kazakhstan, and Belarus reflects its role in regulated industrial markets, while additional country requirements can be discussed according to project needs.

The use of electrostatic charge-resistant engineered polymer is a significant advantage. In hazardous areas, static charge accumulation may present a concern, especially in dry or dusty environments. The selected material helps address this requirement while still offering the corrosion resistance and weight advantages of a polymer enclosure.

Flexible Cable Entry Arrangement

The standard version provides six M20 entries and one M32 entry, allowing multiple heating cables or cold leads to be connected alongside a power cable. The larger 35 mm² version provides six M20 entries and one M40 entry, which is better suited for larger power cable glands. This range of entry options gives designers and installers more freedom than many fixed-entry or limited-entry junction boxes.

The M20 entries support the use of connection kits for different heating cable types. Because heat tracing systems can vary widely in cable construction, insulation type, conductor size, and termination method, the ability to select suitable glands and connection kits separately is a practical advantage. Installers can match the junction box to the exact project configuration rather than forcing the project to adapt to a less flexible enclosure.

Two Terminal Platforms for Different Project Needs

The MF-EX-21 family offers two terminal approaches. The standard version uses spring-type terminals, which are convenient for fast installation and consistent contact force. Spring terminals are useful in applications where vibration, thermal cycling, or routine maintenance may affect connections, because the spring mechanism helps maintain pressure on the conductor.

The MF-EX-21/35MM2 version uses larger screw terminals from Weidmuller, supporting conductor sizes up to 35 mm² stranded and 16 mm² solid. This version is ideal when high current capacity, larger cables, or series heating cable applications require more substantial termination hardware. The 100 A current rating and 690 Vac voltage rating give it an advantage in demanding industrial systems where smaller junction boxes may not provide enough electrical capacity.

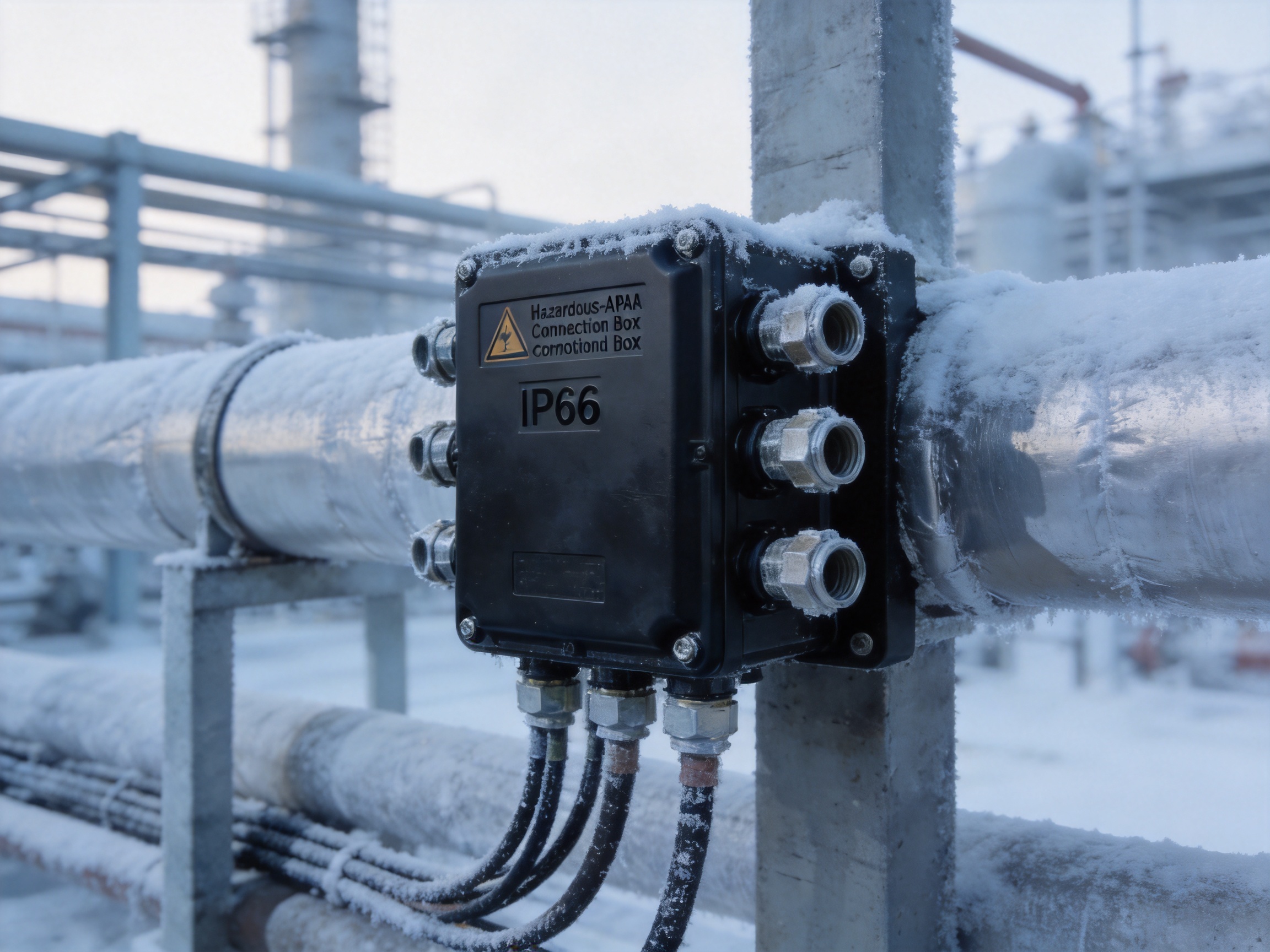

IP66 Protection for Outdoor and Industrial Environments

Ingress protection is a core performance factor for heat tracing junction boxes. Water, dust, and process contaminants can degrade electrical insulation, corrode conductors, and increase failure risk. The MF-EX-21 provides IP66 protection, which supports use in harsh outdoor and industrial environments where strong water jets and dust exposure may occur.

The silicone rubber gasket plays an important role in maintaining enclosure sealing. Silicone rubber is known for flexibility, temperature resistance, and long-term sealing performance. Combined with captive stainless-steel lid screws, the gasket system helps maintain compression and reduces the chance of lost hardware during installation or maintenance.

Broad Temperature Range

The standard version operates in ambient temperatures from -55°C to +55°C, while the 35 mm² version operates from -50°C to +55°C. This range supports cold-climate installations, winterization systems, pipeline freeze protection, and outdoor process plants. In many regions, heat tracing equipment must remain reliable during severe winter conditions; a junction box that can tolerate low ambient temperatures is essential for dependable system operation.

Competitor products that are not designed for low-temperature industrial service may become brittle, leak, or suffer from gasket hardening. The MF-EX-21’s engineered polymer body and silicone gasket are selected to support stable performance across a wide operating range.

Application Areas

Power Supply Box

As a power supply box, the MF-EX-21 provides the main connection point between the electrical supply and one or more heating circuits. It can be used in single-phase, three-phase, or loop arrangements depending on the circuit design. The terminal layout helps distribute power neatly and safely, while the multiple entries allow separate routing of power and heating cables.

End Box

In some heat tracing layouts, an end box is required to provide an enclosed termination point. The MF-EX-21 can serve this function when configured with appropriate accessories and connection kits. Its sealed enclosure helps protect the termination from moisture, dust, and mechanical damage.

Splice Box

Heat tracing circuits may require cable splices due to long pipeline runs, repair work, or changes in system layout. The MF-EX-21 can be used as a splice box, supporting connections between heating cables, cold leads, and power cables. For PI and MI heating cables, the 35 mm² version provides additional terminal capacity and conductor-size flexibility.

Marshalling Box

In larger installations, multiple heating circuits may be grouped through marshalling boxes for organized power distribution and easier maintenance. The MF-EX-21 is suitable for this role because it can accommodate multiple cable entries and supports DIN rail-mounted terminals. The clear internal arrangement reduces wiring congestion and improves inspection access.

Series Heating Cable Systems

The MF-EX-21/35MM2 version is particularly useful in series heating cable systems involving PI and MI cables. Such systems may require larger conductor sizes, higher current capacity, and secure terminal hardware. With its 690 Vac and 100 A ratings, the larger version provides a strong solution for applications where standard junction boxes may be insufficient.

Material Engineering and Structural Design

The enclosure is made from electrostatic charge-resistant glass-filled engineered polymer. This material choice provides several practical benefits. First, glass-filled polymer improves mechanical strength compared with ordinary plastic materials. Second, the polymer construction helps resist corrosion, which is important in chemical plants, offshore-related environments, and outdoor industrial facilities. Third, the electrostatic charge-resistant property supports safer use in hazardous areas.

The box and lid are black, giving the product a professional industrial appearance and helping the enclosure withstand the visual demands of outdoor installations. The lid is secured with captive stainless-steel screws. Captive screws are valuable in field work because they remain attached to the lid, reducing the chance of losing parts during inspection or servicing. Stainless steel also provides corrosion resistance and maintains strength in wet or chemically exposed environments.

The sealing gasket is made from silicone rubber. This material is widely used in industrial sealing applications because it remains flexible across a broad temperature range and resists aging better than many basic elastomers. In a heat tracing junction box, the gasket must maintain sealing pressure through repeated thermal cycles, installation handling, and long-term exposure. The silicone gasket contributes directly to the product’s IP66 protection.

Installation Efficiency

Installation efficiency is one of the MF-EX-21’s strongest practical advantages. Industrial heat tracing projects can involve hundreds or thousands of connection points. Even small reductions in installation time per junction box can create major savings across a project. The MF-EX-21 supports efficient installation through its molded mounting holes, multiple cable entries, DIN rail terminal system, temporary rain plugs, and modular accessory approach.

The standard version can accommodate up to six heating cables or cold leads and a power cable depending on the configuration. This reduces the need for multiple separate boxes in some layouts and helps simplify cable routing. When pipe mounting is required, the standard version can be mounted with support brackets such as SB-100 or SB-101. For wall mounting, the molded base holes provide straightforward attachment.

Temporary rain plugs help protect unused entries during installation before final glands and connection kits are fitted. This is useful on construction sites where equipment may be installed in stages and exposed to weather before commissioning. Stopping plugs also help maintain enclosure integrity when certain entries are not used.

The separately ordered accessory system is another installation advantage. Because different heating cables require different glands, insulation entry kits, and connection kits, a one-size-fits-all package can result in waste or incompatibility. The MF-EX-21 allows the correct M20, M32, or M40 glands and connection kits to be selected according to cable diameter and project conditions.

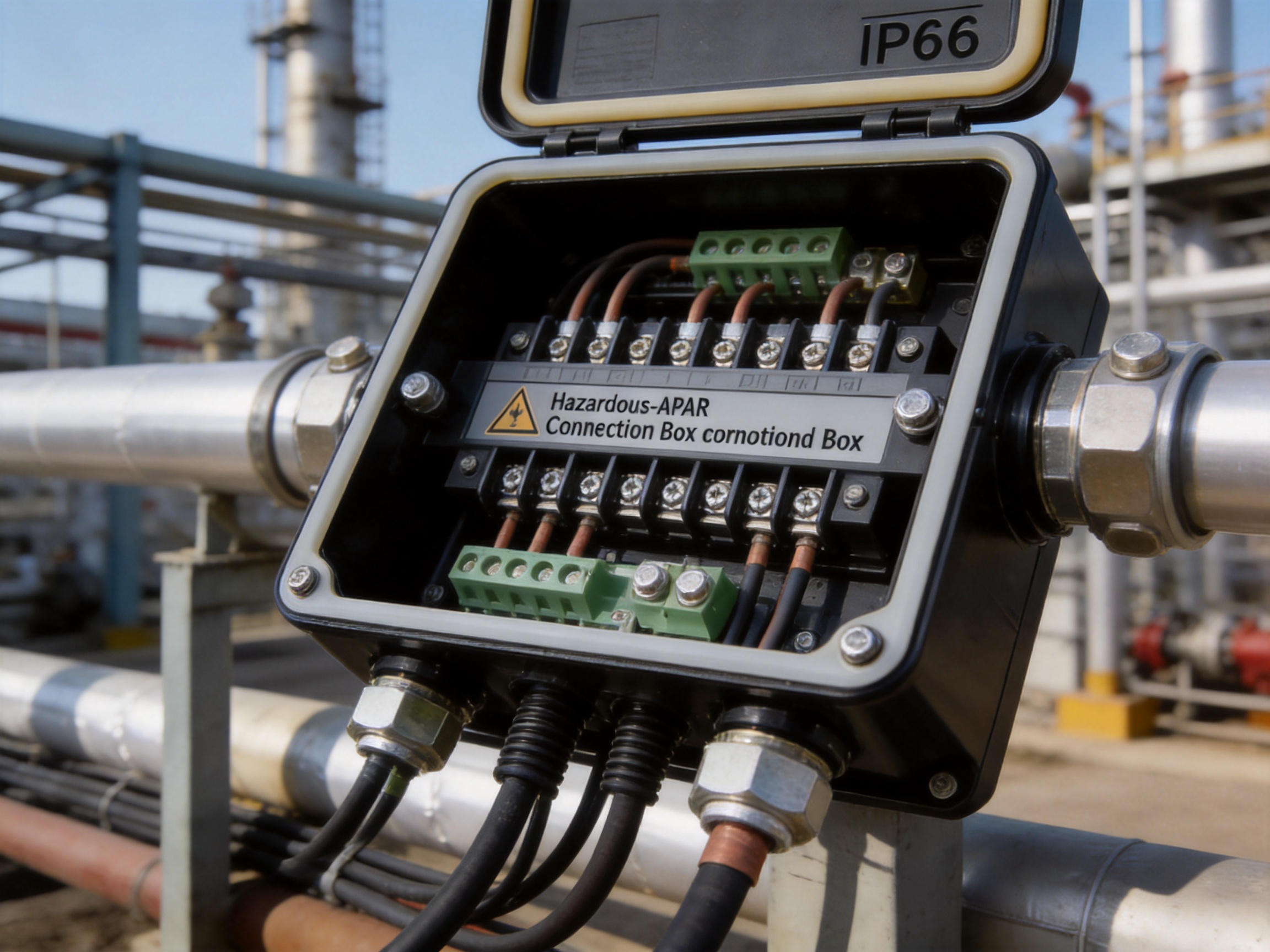

Terminal Performance and Electrical Safety

The terminal system is central to the performance of any junction box. In the standard MF-EX-21, six spring-type terminals are installed on a DIN rail. They support conductor sizes up to 10 mm² solid and stranded, maximum operating voltage of 550 Vac, and maximum operating current of 53 A. This makes the standard version suitable for many heat tracing circuits where moderate conductor size and current capacity are required.

Spring terminals provide consistent contact force. In installations exposed to vibration or thermal expansion and contraction, this can help maintain a stable electrical connection. The labeled terminal arrangement supports phase, neutral, and protective earth wiring, improving clarity for installers and maintenance personnel.

The MF-EX-21/35MM2 version is built for heavier-duty electrical requirements. It uses three WDU35 screw terminals, two WPE10 earth terminals for heating cable earth conductors, and one WPE35 earth terminal for the power cable. The terminal system can support up to six fully loaded phase or neutral terminals, with a maximum of ten terminals in total. This allows a high degree of internal configuration while maintaining practical space management.

The 35 mm² version supports a minimum conductor size of 2.5 mm² and a maximum conductor size of 35 mm² stranded or 16 mm² solid. Its maximum operating voltage is 690 Vac and maximum operating current is 100 A. These values make it suitable for larger power distribution duties and high-capacity heat tracing circuits.

Accessory Compatibility

The MF-EX-21 family is supported by a range of separately ordered accessories. For the standard version, support brackets such as SB-100 and SB-101 are available. Hazardous-area approved glands can be selected for PI cold leads, including GL-44-M20-KIT for cables with diameters from 5.5 mm to 13 mm. Power cable glands such as GL-45-M32 support cable diameters from 12 mm to 21 mm.

The larger 35 mm² version supports power cable glands such as GL-51-M40 for cable diameters from 17 mm to 28 mm, GL-45-M32 for 12 mm to 21 mm, and GL-50-M20 for 5.5 mm to 13 mm. A hazardous-area M40 male to M32 female reducer is also available when cable gland adaptation is needed. This flexibility helps contractors adapt the junction box to different cable sizes without redesigning the enclosure system.

Loose terminals, end plates, and terminal jumpers are available for both versions. This supports customized wiring configurations and replacement needs. The standard version supports WAGO-related terminal accessories, while the larger version supports WDM-related terminal accessories, including 35 mm² phase or neutral terminals, 10 mm² and 35 mm² earth terminals, end plates, and jumpers.

For PI cold leads, the IEK-20-PI insulation entry kit is available for the 35 mm² version. For factory-terminated MI cold leads, the gland may already be present, simplifying installation. This attention to different cable technologies shows that the junction box is designed around real heat tracing project requirements rather than generic electrical enclosure assumptions.

Manufacturing Strengths Behind the Product

The product is supported by a manufacturer with more than 35 years of experience in electric heating and thermal control technologies. Long-term experience matters because heat tracing products must perform under real industrial conditions, not only in laboratory settings. Product design, material selection, cable compatibility, terminal arrangement, and quality inspection all benefit from accumulated field knowledge.

The company’s product scope includes self-regulating heating cables, constant-power heating cables, glass fiber heating cables, silicone rubber heating systems, MI cables, snow melting cables, LCD tracked heaters, electric hot wires, and heating cable accessories. This broad technical background allows the MF-EX-21 to be developed as part of a complete heat tracing ecosystem rather than as an isolated enclosure.

The manufacturing organization has passed ISO9001 quality system certification, and its products have obtained national CCC certification. It has also obtained explosion-proof certification and EAC Eurasian Union certification. These certifications reflect systematic attention to product consistency, process control, safety requirements, and market compliance.

Advanced manufacturing strength is also reflected in the company’s investment in product simulation testing laboratories and expanded factory capacity. Simulation testing helps evaluate product behavior under practical operating conditions such as temperature variation, moisture exposure, electrical load, and installation stress. For junction boxes, this kind of testing supports improvements in sealing performance, terminal reliability, material durability, and accessory compatibility.

The company has built its reputation by combining research, development, manufacturing, and sales. Its technical work includes automatic temperature-control electric heating belts, self-limiting electric heating belts, heat tracing belts, constant-power systems, glass fiber electric heating belts, MI cables, and related accessories. This integrated capability helps ensure that junction boxes, cable glands, entry kits, and heating cables can be selected as coordinated components for complete systems.

Advanced Process Control and Quality Assurance

Reliable junction boxes require more than good design. They require disciplined manufacturing and inspection. In an industrial heat tracing environment, small defects can lead to water ingress, loose electrical connections, damaged threads, or premature material failure. A manufacturer with a strong quality system can reduce these risks by controlling incoming materials, production processes, assembly procedures, and final inspection.

The engineered polymer enclosure must be produced with dimensional stability so that the lid, gasket, cable entries, and mounting holes align correctly. Poorly molded enclosures may distort under screw pressure or fail to seal consistently. Glass-filled engineered polymer requires controlled processing to ensure mechanical strength and uniform performance. The MF-EX-21 benefits from a manufacturing approach focused on stable enclosure geometry and repeatable assembly.

Terminal rail assembly is another important process. DIN rail-mounted terminals must be installed securely, correctly labeled, and arranged according to the intended wiring configuration. Earth terminals must provide dependable grounding continuity. Terminal jumpers must fit properly and support the required electrical arrangement. Quality checks at this stage help prevent wiring confusion and reduce commissioning issues.

Gasket installation and lid sealing are equally important. The silicone rubber gasket must be positioned correctly and compressed evenly when the lid is fixed. Captive stainless-steel screws help maintain assembly reliability and simplify field service. During quality inspection, enclosure sealing, thread condition, terminal arrangement, and accessory completeness should be verified before shipment.

The company’s long-term development of heating cable technologies also strengthens its accessory manufacturing. Because it produces and supplies various heat tracing products, it understands cable diameters, insulation structures, grounding requirements, and field installation challenges. This experience directly informs the design of junction boxes and connection accessories.

Competitive Advantages for EPC Contractors and Plant Owners

EPC contractors need components that reduce engineering uncertainty, simplify procurement, and support field installation. Plant owners need long-term safety, maintainability, and reliability. The MF-EX-21 serves both groups by combining hazardous-area suitability, multiple cable entries, strong sealing, clear terminal structure, and compatibility with several heat tracing cable types.

Compared with generic junction boxes, the MF-EX-21 is more closely aligned with electric heat tracing. It is not merely an empty enclosure. It includes terminals mounted on a DIN rail, stopping plugs, temporary rain plugs, and wiring configuration support. The standard version supports spring-type terminal installation efficiency, while the 35 mm² version supports larger screw-terminal applications. This dual-platform approach helps projects select the right version according to circuit load and conductor size.

For plant owners, the IP66 enclosure and silicone gasket support long-term outdoor reliability. The electrostatic charge-resistant polymer supports hazardous-area use. Stainless-steel captive screws reduce maintenance problems and help technicians work efficiently. The ability to mount the box on a wall or pipe also improves maintainability because the box can be positioned for safe access.

For distributors and system integrators, the product offers a clear ordering structure. The standard version is ordered as MF-EX-21 with part number 2000-M20 and approximate weight of 1.2 kg. The larger version is ordered as MF-EX-21/35MM2 with part number 2000-M21 and approximate weight of 1.9 kg. Accessories can be ordered separately according to cable type and project requirements.

Design Benefits in Harsh Environments

Heat tracing systems are often installed in environments where ordinary electrical accessories degrade quickly. Chemical vapor, rain, snow, dust, vibration, sunlight, and wide temperature changes can all affect service life. The MF-EX-21 addresses harsh-environment challenges with a corrosion-resistant polymer body, silicone sealing gasket, stainless fasteners, and IP66 protection.

In cold climates, low-temperature performance is essential. A junction box used for freeze protection must remain reliable when the ambient temperature is far below freezing. The MF-EX-21 standard version supports ambient temperatures down to -55°C, making it suitable for severe winter applications. This is especially important for pipelines, valves, pumps, loading stations, and outdoor process equipment where heat tracing failure can lead to frozen media, production loss, or equipment damage.

In dusty or wet facilities, ingress protection is equally important. The IP66 rating helps prevent dust intrusion and protects against powerful water jets. This is valuable in plants where washdown, rainstorms, snow melt, or process spray may reach the enclosure. The product’s sealing structure helps preserve electrical insulation and terminal integrity.

In hazardous locations, material choice becomes a safety factor. Electrostatic charge-resistant glass-filled engineered polymer reduces concerns associated with static charge accumulation. Combined with proper glands, connection kits, grounding, and installation practice, the junction box supports safe heat tracing electrical connections in regulated industrial areas.

System Integration with Heating Cable Technologies

One of the major advantages of the MF-EX-21 is its compatibility with different heating cable systems. Heat tracing is not a single technology. Projects may use self-regulating cables for freeze protection, constant-power cables for long circuits, PI cables for high-temperature applications, MI cables for rugged industrial service, silicone rubber heating systems for flexible heating, and snow melting cables for outdoor surfaces. A good junction box must support this variety through adaptable entries and terminal configurations.

The MF-EX-21 is particularly useful when power cables, heating cables, and cold leads must meet in a protected enclosure. M20 connection kits can be selected according to the type of heating cable used. For PI cold leads, hazardous-area approved glands and insulation entry kits are available. For MI cold leads, factory-terminated units may already include the required gland, reducing installation complexity.

This system-level compatibility is an important competitive advantage. A generic junction box supplier may not understand the differences between PI, MI, self-regulating, and constant-wattage cable systems. A manufacturer specializing in heat tracing accessories can design and support products that reflect actual field conditions. The MF-EX-21 benefits from this focused expertise.

Safety and Maintenance Considerations

Correct installation is essential for safe operation. Installers should select glands and connection kits that match the cable diameter, cable type, hazardous-area requirement, and environmental exposure. Unused entries should be sealed with suitable stopping plugs. The lid should be tightened evenly to maintain gasket compression, and terminals should be wired according to the circuit design.

Grounding must be handled carefully. Protective earth terminals are included in both versions, and the larger 35 mm² version provides dedicated earth terminal arrangements for heating cable earth conductors and the power cable. Proper grounding supports electrical safety, fault protection, and compliance with installation standards.

During maintenance, technicians should inspect the enclosure for physical damage, check that lid screws are secure, confirm that cable glands remain tight, examine gasket condition, and verify that terminal connections are stable. Because the terminals are mounted on a DIN rail, inspection and replacement are more convenient than in poorly organized enclosures.

Maintenance intervals should be based on site conditions. Installations exposed to severe weather, vibration, corrosive atmosphere, or frequent thermal cycling may require more frequent inspection. The MF-EX-21’s durable construction reduces maintenance burden, but no hazardous-area electrical component should be neglected after installation.

How the Product Supports Project Standardization

Large heat tracing projects benefit from standardized components. When a project uses too many different junction box types, procurement becomes complex, installation training becomes harder, spare parts become fragmented, and maintenance documentation becomes less efficient. The MF-EX-21 helps reduce this complexity by covering multiple functions with one product family.

The same junction box family can serve as a power supply box, end box, splice box, or marshalling box. The standard version covers common 10 mm² and 53 A applications, while the 35 mm² version covers higher-capacity requirements. Accessories can be selected according to cable type and entry size. This approach allows engineers to create a consistent design standard while still adapting to specific circuit requirements.

Standardization also benefits maintenance teams. When technicians repeatedly encounter the same enclosure design, terminal arrangement, gasket structure, and accessory system, troubleshooting becomes faster and safer. Spare parts such as stopping plugs, glands, terminals, end plates, and jumpers can be managed more efficiently.

Ordering and Selection Guidance

When selecting between the two versions, the first consideration should be electrical capacity. If the application uses conductor sizes up to 10 mm², voltage up to 550 Vac, and current up to 53 A, the standard MF-EX-21 may be suitable. If the application requires larger conductors, higher voltage, higher current, or series PI and MI heating cable connections, the MF-EX-21/35MM2 should be considered.

The second consideration is cable entry size. The standard version includes six M20 entries and one M32 entry, while the 35 mm² version includes six M20 entries and one M40 entry. The power cable diameter and gland requirement should be checked before ordering. If a reducer is needed, the M40 to M32 hazardous-area reducer can support adaptation.

The third consideration is cable type. PI cold leads, MI cold leads, and power cables may require different glands or insulation entry kits. M20 connection kits must be ordered separately according to the heating cable being used. This modular ordering approach ensures compatibility and avoids unnecessary components.

The fourth consideration is mounting. If wall mounting is planned, the molded holes in the base can be used. If pipe mounting is needed for the standard version, support brackets such as SB-100 or SB-101 should be selected. Mounting location should allow safe access for installation, inspection, and maintenance.

Company Capability and Global Market Strength

The manufacturer behind the MF-EX-21 has developed from an electric heating instrument factory into a professional thermal control technology enterprise with strong research, manufacturing, and sales capabilities. Its business covers domestic and international markets, and its products are used in many regions and industries. This experience supports product reliability because global projects expose equipment to varied climates, standards, and field practices.

The company has more than 35 years of industry experience, annual output exceeding 10,000 units, a distributor network of more than 2,000 partners, and business coverage in more than 85 areas. These figures demonstrate production capacity, market acceptance, and supply-chain experience. For customers, this means the product is backed by a supplier capable of supporting large projects, repeat orders, and after-sales needs.

The company emphasizes innovation, cooperation, effectiveness, and development. Its product history includes self-limiting temperature technologies, carbon fiber parallel heating cables, explosion-proof certification, EAC certification, and continued expansion of factory and testing capabilities. This technical background strengthens confidence in the MF-EX-21 because the junction box is part of a broader engineering ecosystem focused on electric heating performance and safety.

For OEM and ODM customers, the company’s manufacturing base and heat tracing expertise provide additional value. Custom heating cable systems often require compatible accessories, enclosures, glands, and installation components. A supplier that understands both cable manufacturing and accessory requirements can provide more coherent system solutions than a supplier focused only on standalone boxes.

Q&A Section

What is the MF-EX-21 used for?

The MF-EX-21 is used as a hazardous-area junction box for electric heat tracing systems. It can serve as a power supply box, end box, splice box, or marshalling box for connections between power cables, heating cables, and cold leads.

What is the difference between the standard version and the 35 mm² version?

The standard version uses spring-type terminals, supports up to 10 mm² conductors, operates up to 550 Vac and 53 A, and has six M20 entries plus one M32 entry. The 35 mm² version uses larger screw terminals, supports up to 35 mm² stranded conductors, operates up to 690 Vac and 100 A, and has six M20 entries plus one M40 entry.

Can the product be used outdoors?

Yes. The junction box has IP66 ingress protection, a silicone rubber gasket, stainless-steel captive lid screws, and an engineered polymer enclosure. These features support outdoor and harsh industrial use when the product is installed correctly with suitable glands and stopping plugs.

Is it suitable for cold climates?

Yes. The standard version operates from -55°C to +55°C, and the 35 mm² version operates from -50°C to +55°C. This makes the product suitable for freeze protection and winterization applications in cold environments.

Does the product include cable glands?

Cable glands and M20 connection kits are generally ordered separately according to the cable type and diameter. This allows the correct gland or entry kit to be selected for PI cold leads, MI cold leads, and power cables.

Why are DIN rail-mounted terminals beneficial?

DIN rail-mounted terminals provide organized wiring, easier inspection, and convenient replacement or configuration. They help technicians maintain clear phase, neutral, and earth connections inside the enclosure.

Can the box be pipe mounted?

The standard version can be wall mounted or pipe mounted with suitable support brackets such as SB-100 or SB-101. The 35 mm² version is primarily described for wall mounting through the molded holes in the base.

What makes the enclosure material suitable for hazardous areas?

The box and lid are made from electrostatic charge-resistant glass-filled engineered polymer. This material provides mechanical strength, corrosion resistance, and reduced static-charge concerns, which are important in hazardous-area installations.

How does this product compare with generic junction boxes?

Unlike generic boxes, the MF-EX-21 is designed specifically for heat tracing connections. It offers multiple cable entries, heat tracing accessory compatibility, DIN rail terminals, hazardous-area suitability, IP66 sealing, low-temperature performance, and both standard and high-capacity terminal options.

What industries commonly need this type of junction box?

Typical industries include petroleum, chemical processing, gas, construction, solar energy, geothermal cultivation, industrial process heating, pipeline freeze protection, snow melting, and other applications requiring electric heat tracing or thermal maintenance.

Conclusion

The MF-EX-21 multi-purpose junction box is a strong solution for industrial electric heat tracing systems that require safe, flexible, and durable electrical connections in hazardous areas. Its IP66 protection, electrostatic charge-resistant engineered polymer body, silicone rubber gasket, stainless-steel captive screws, multiple cable entries, and DIN rail-mounted terminals make it suitable for harsh industrial environments.

The product family gives users two practical choices. The standard MF-EX-21 is suitable for many common heat tracing applications with spring terminals, 10 mm² conductor capacity, 550 Vac voltage rating, and 53 A current rating. The MF-EX-21/35MM2 is suitable for larger conductor and higher-capacity applications, offering 35 mm² stranded conductor support, 690 Vac voltage rating, and 100 A current rating.

Its advantages over ordinary junction boxes are clear: better alignment with heat tracing systems, hazardous-area construction, flexible accessory selection, multiple mounting options, strong environmental sealing, and compatibility with PI and MI heating cable installations. Backed by a manufacturer with decades of thermal control experience, ISO9001 quality management, certification achievements, advanced testing capability, and broad product expertise, the MF-EX-21 provides value not only as a component but as part of a complete industrial heat tracing solution.

References

1. Industrial Electric Heat Tracing Design and Installation Guidelines.

2. Hazardous Area Electrical Equipment Selection Principles.

3. IEC 60529, Degrees of Protection Provided by Enclosures.

4. Heat Tracing System Maintenance and Inspection Practices.

5. Technical Data for MF-EX-21 Multi-Purpose Junction Box and MF-EX-21/35MM2 Junction Box.

6. Quality Management Systems and Industrial Electrical Accessory Manufacturing Practices.
